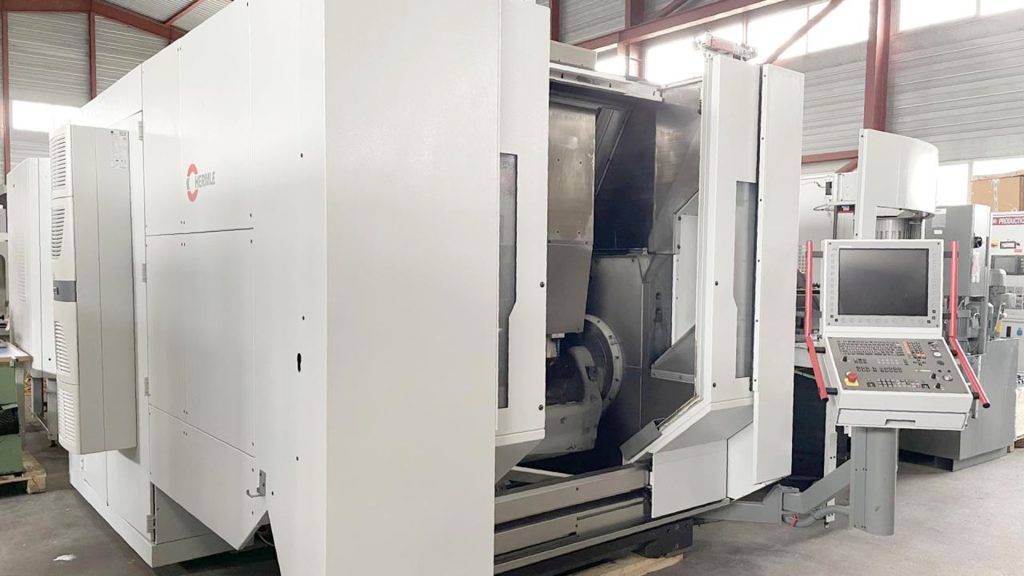

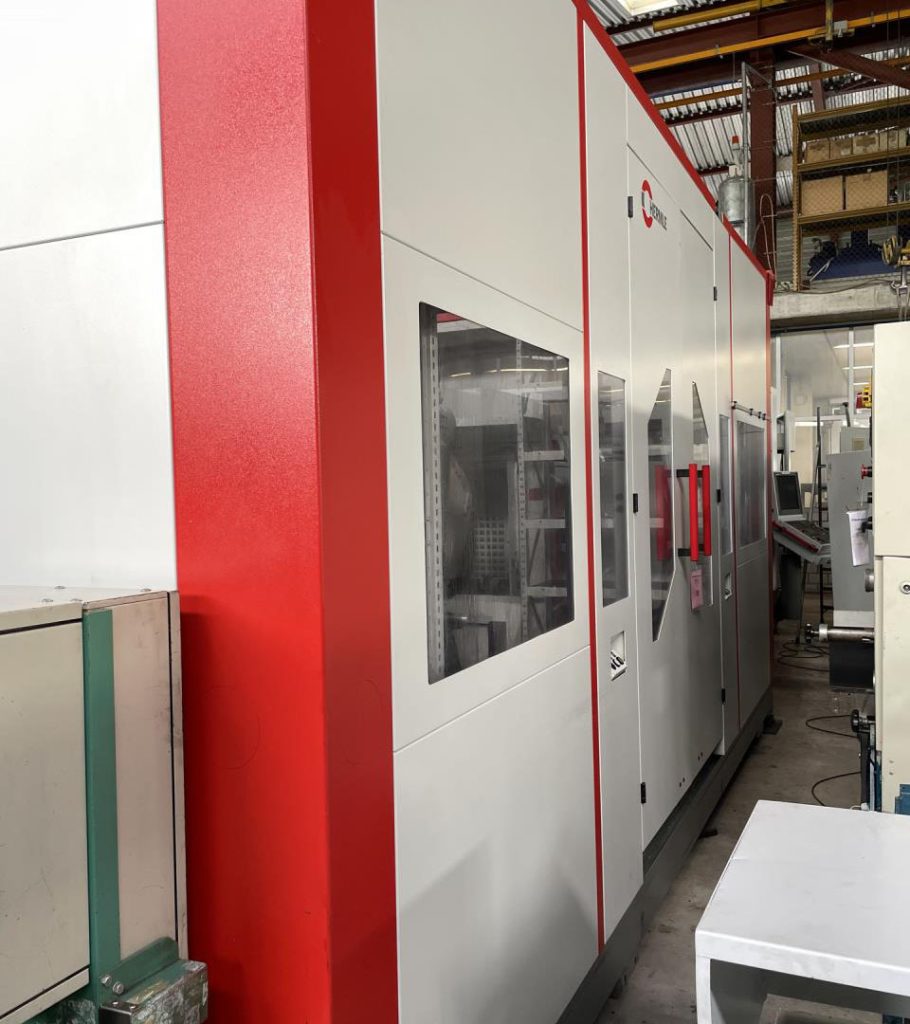

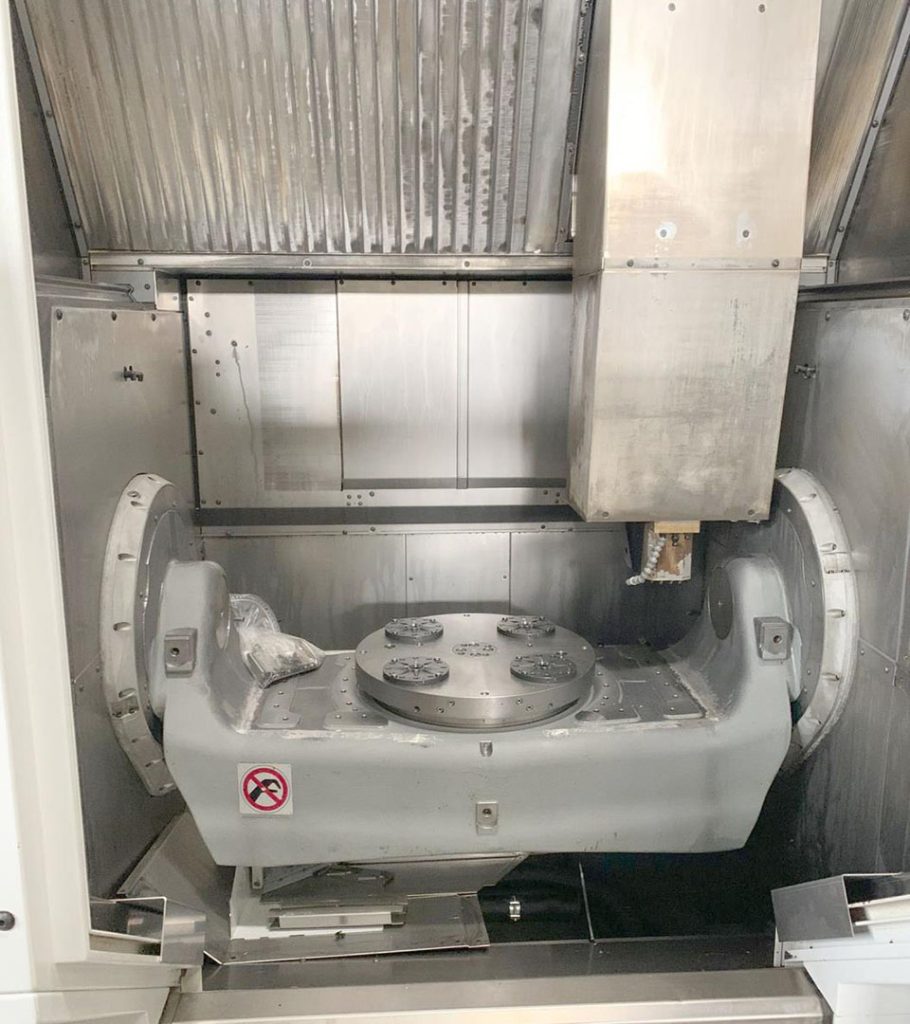

HERMLE C 42 5-axis machining centres with loading robot
Posted by：EurasiacomDate Posted：2024-1

Brand：HERMLE? ? Type：C 42 ? Category：machining centres

Technical Parameter



Technical data
Number of machines 2
Number of axis total 5

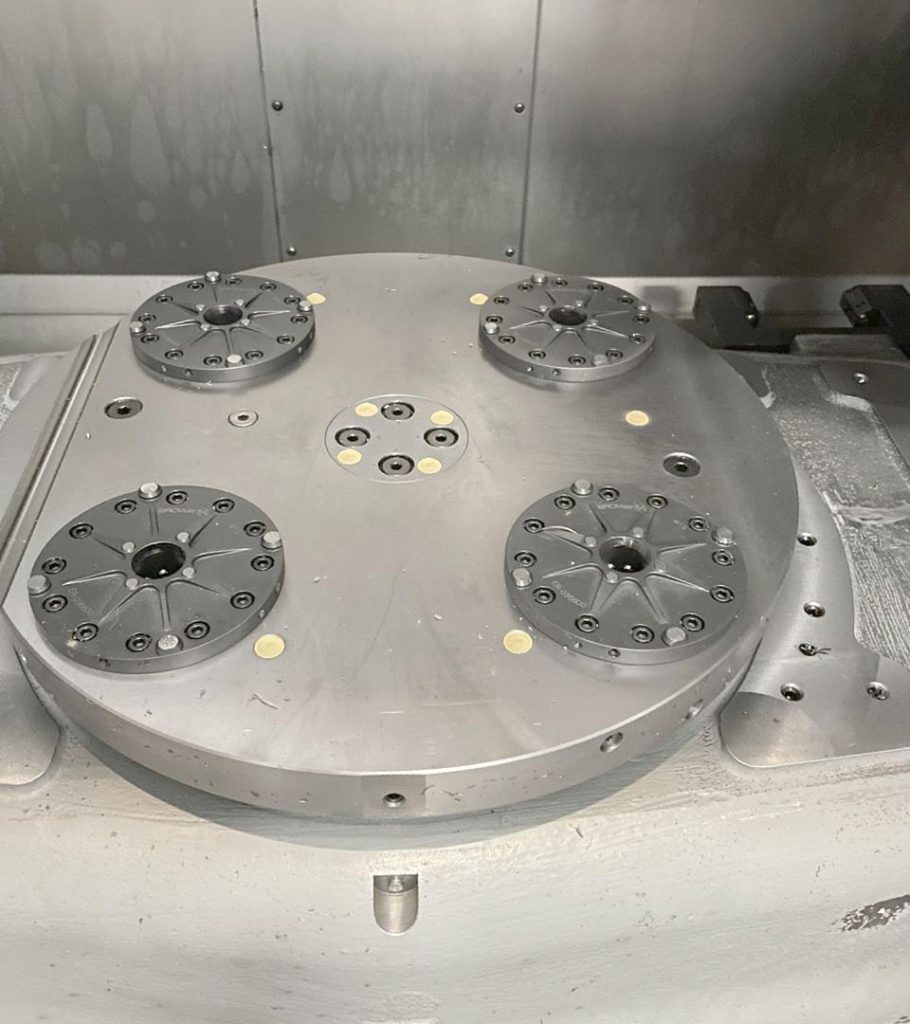

Circulary table diameter 440 mm
Number of T-channels 5
T-channel width 14H7 mm
Table load max. 450 kg
Longitudinal travel (X-axis) 800 mm
Transversal travel (y-axis) 800 mm
Vertical travel (z axis) 550 mm
Swivel angle (a-axis) +/-130 °
Table speed 30 rpm
Pallets chanching device
numbers 30
Length 400 mm
Width 400 mm
Tool changer
Number of tools 42
Spindle nose HSK-A 63
Spindle speeds
stepless
from 0 rpm
up to 18000 rpm
Rapid traverse long. 45 m/min
Rapid traverse transversal 45 m/min
Rapid traverse vertical 40 m/min
Air connect 6 bar
Voltage 50 Hz 3x 400 Volt
Spindle power 42 kW
Torque max. 148 Nm
Total power required 37 kVA
Machine’s weight about 13500 kg
Overall dimensions machine
Length 5000 mm
Width 2450 mm
Height 3200 mm
Various accessories

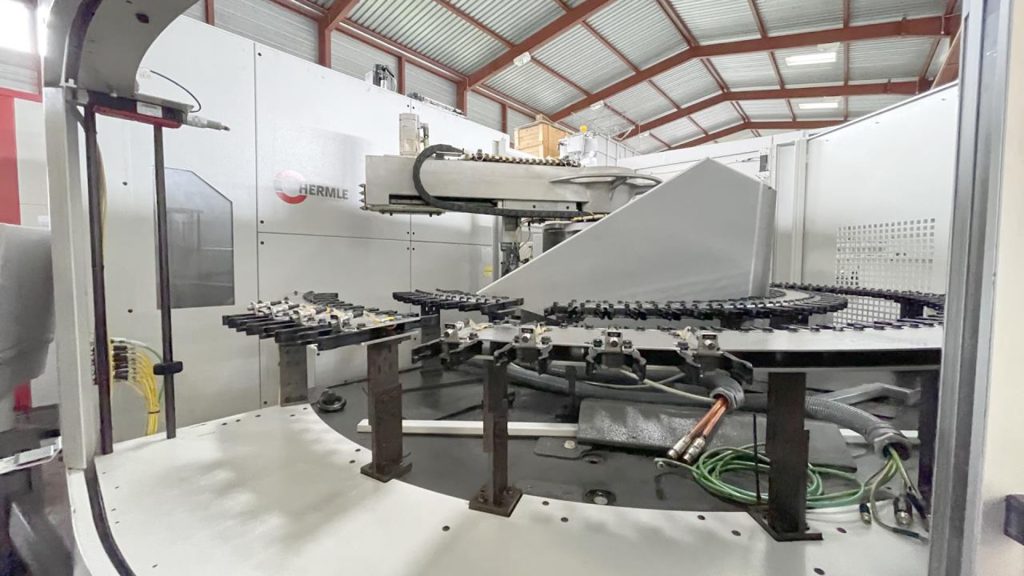

Addet tool-holder magazine
number of tools 160
Coolant through spindle (cts) 80 bar
Air blast through milling spindle
Paper filter facility
Feeler Renishaw
Tool break control BLUM
Chip conveyor

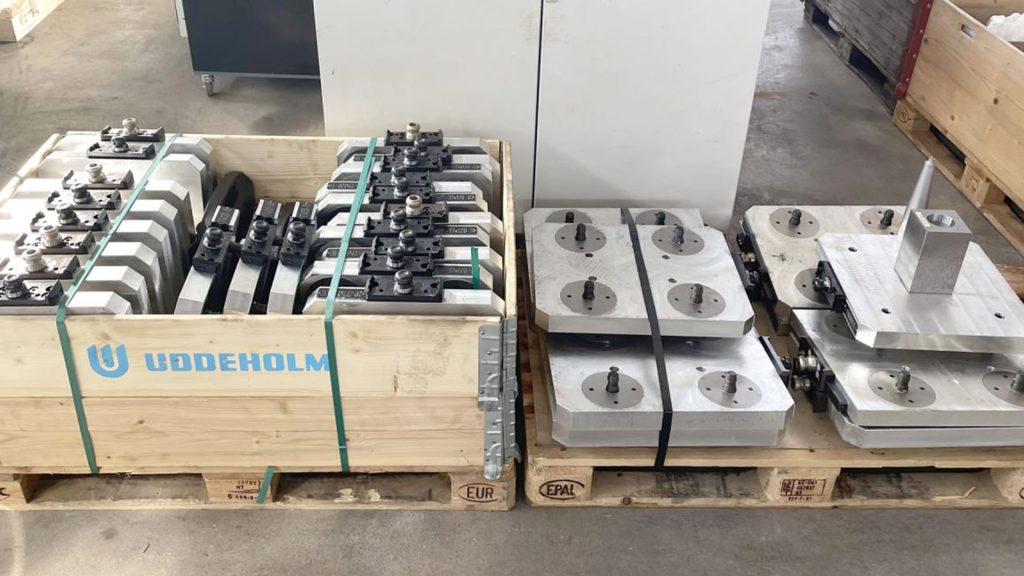

Pallets number 30
Oil mist extractor

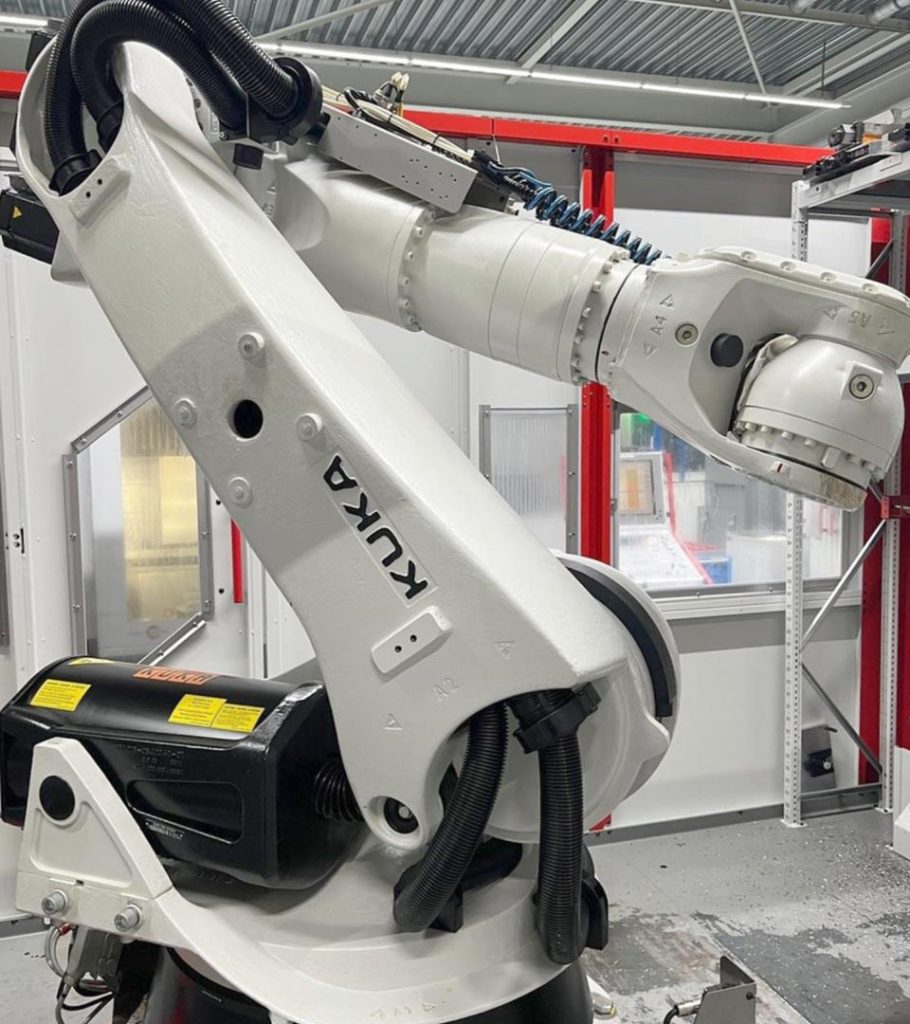

Loading roboter KUKA

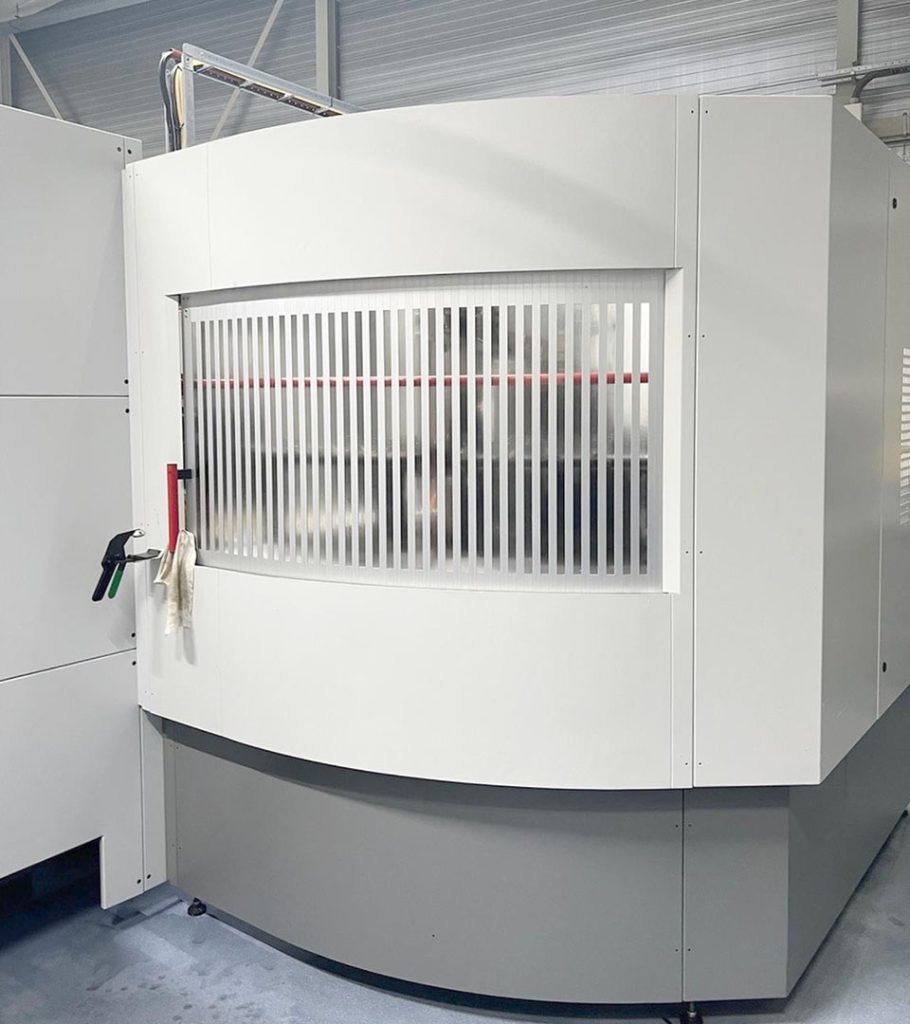

Rotating viewing window
Interface serial port RS 232
Interface Ethernet
Interface USB
Switch cabinet Air conditioner
Remarks
spindle hours 2011 = 7500 h
spindle hours 2012 = 12000 h
Spindle revised 2016 / 2020
Operating hours 2011 = 43135 h
Operating hours 2012 = 41456 h
  •
