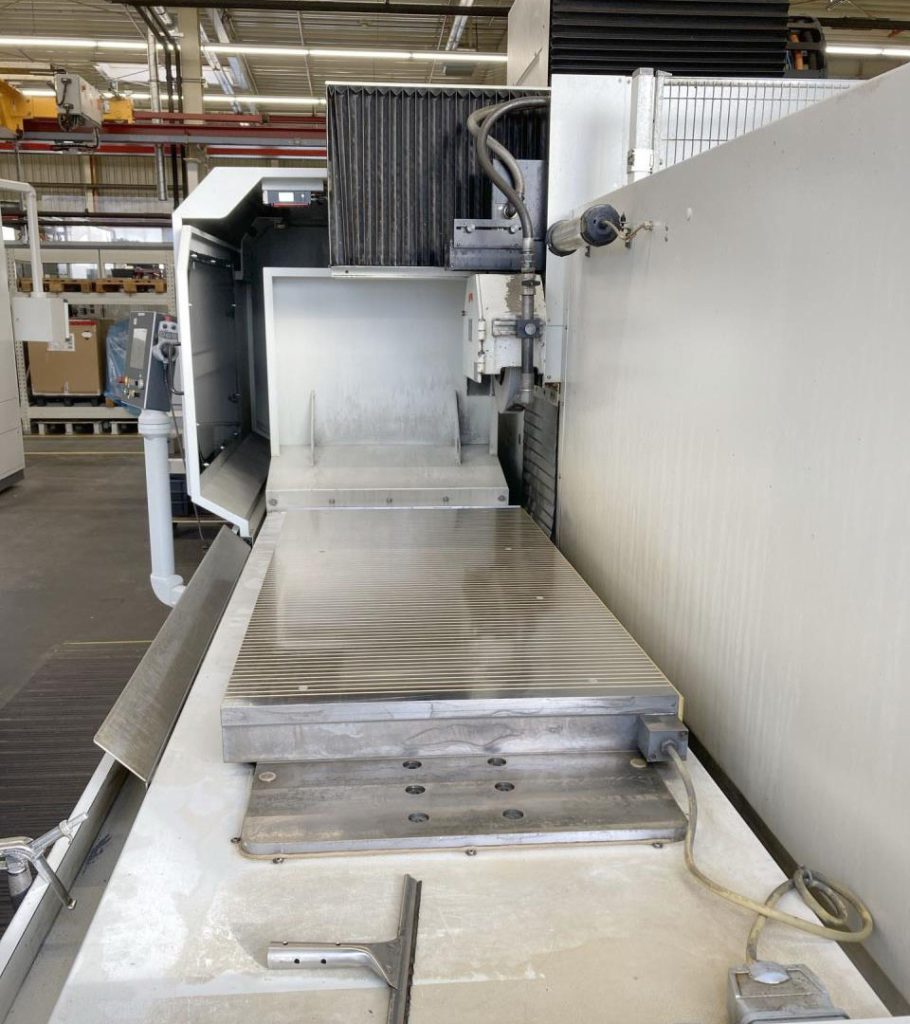

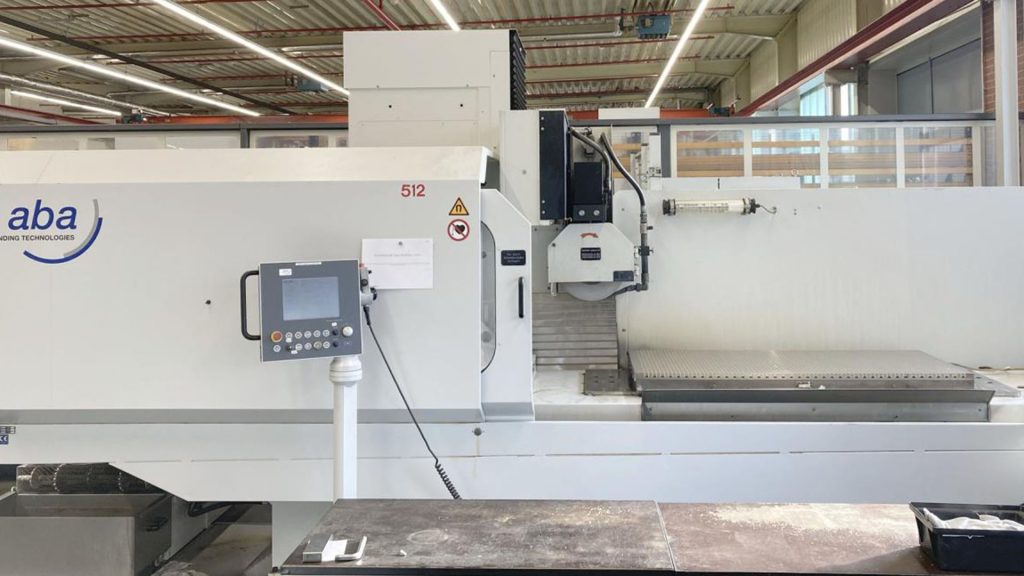

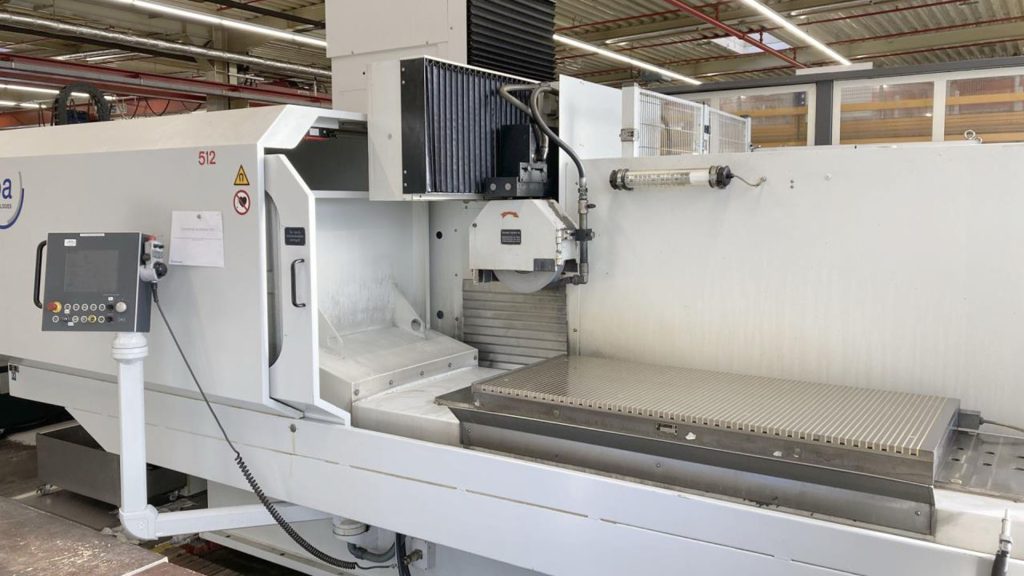

ABA grinding machine type MULTILINE 1507 A
Posted by：EurasiacomDate Posted：2024-1

Brand：ABA? ? Type：MULTILINE 1507 A? ? Category：grinding machine

Technical Parameter



Table length 2000 mm
Table width 800 mm
Grinding length 2000 mm
Grinding width 1000 mm
Table load max. 3300 kg
Max. distance from table
to spindle-centreline 900 mm
Longitudinal travel (X-axis) 2400 mm
Cross travel (z-axis) 920 mm
Vertical travel (Y-axis) 730 mm
Automatic longitudinal feeds
stepless
from 2000 mm/min
up to 35000 mm/min
Automatic cross-feed
stepless
from 5 mm/min
up to 5000 mm/min
Automatic Vertical feed
stepless
from 1 mm/min
up to 3000 mm/min
Grinding wheel speeds
stepless
from 50 rpm
up to 2500 rpm
Diameter of grinding wheel 500 mm
Width of the grinding wheel 100 mm
Drilling cap. of grind.wheel 203.2 mm
Voltage 50 Hz 3x 400 Volt
Grinding spindle motor 26 kW
Total power required 35 kW
Machine’s weight about 13000 kg
Overall dimensions machine
Length 6465 mm
Width 3770 mm
Height 3000 mm
Various accessories
Coolant system
Vice width 160 mm
Lamp
Set of grinding wheels
Set of flanges
Balancing arbor
Central lubrification
Oil mist extractor
Handwheel electroinic
  •
