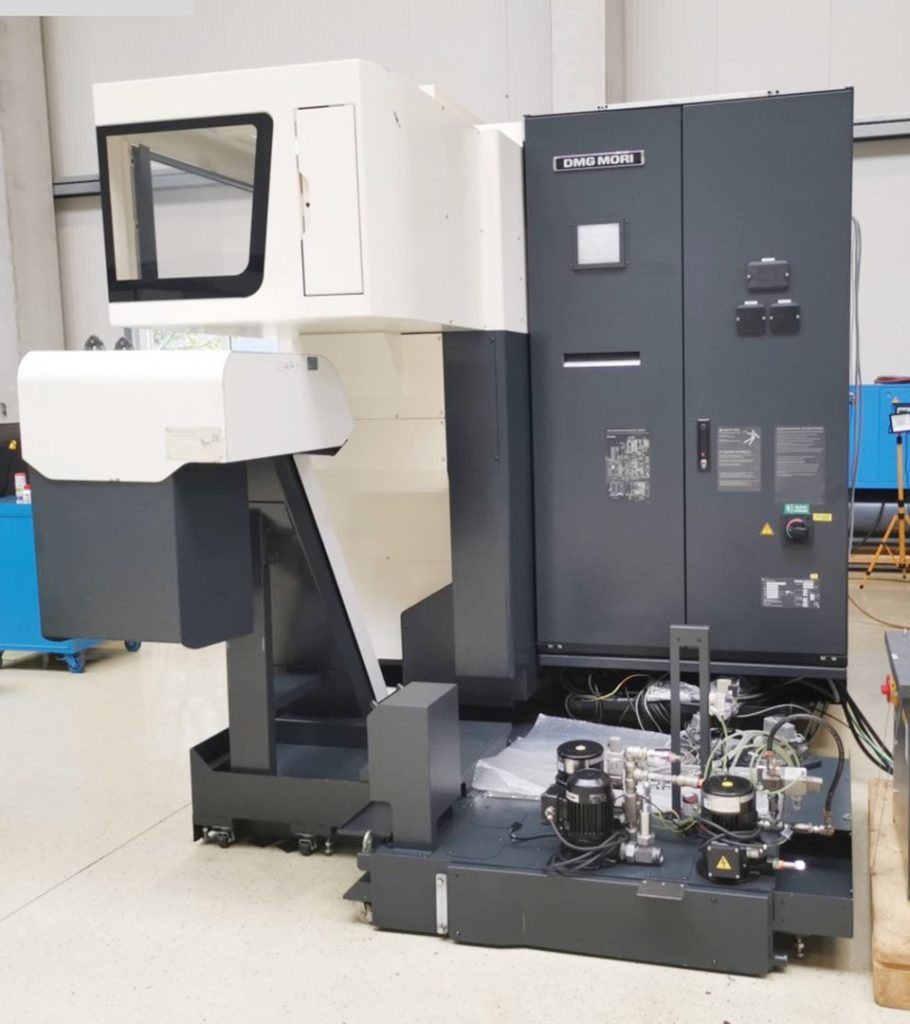

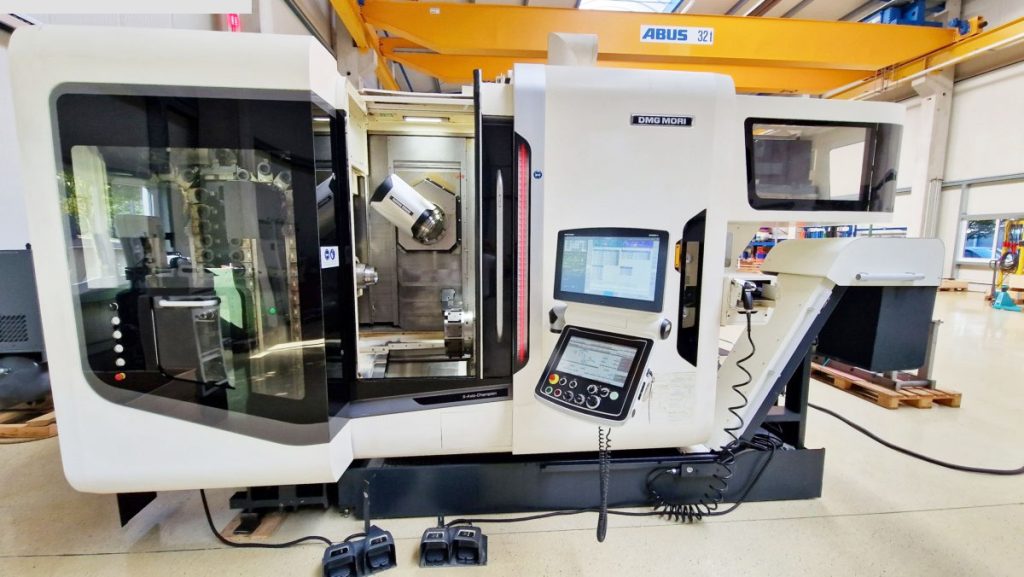

DMG-MORI CNC Turning and Milling Center
Posted by：EurasiacomDate Posted：2024-1

Brand：DMG-MORI? ? Type：S-33? ? Category：NTX1000Ge2/SZM

Technical Parameter



Yearofconstruction 2017
Control CNC
Location Monheim(Germany)
Deliverytime Immediately
Quotation Exwarehouse,loadedontruck
turning diameter 430 mm
turning length 800 mm
control FANUC 31i-B5
swing diameter 680 mm
spindle bore 73 mm
main spindle speeds max.5000 U/min.
power capacity 18,5 / 15 kW
Subspindle spindle speeds max. 6000 U/min.
Subspindle motor 11 / 7,5 kW
x-axis 455 mm
z-axis 800 mm
total power requirement 55 kVA
weight of the machine ca. 12,0 t
dimensions of the machine ca. 3,7 x 2,6 x 3,17 m
5-axis simultaneous machining
Approx. operating hours 13800 h
Spindle hours approx. 3500 h
The machine has been serviced regularly.
An actual accuracy test report is available upon request.
* CNC control FANUC 31i-B5 with CELOS ERGOline Touch, MAPPS 4S
* Main and subspindle

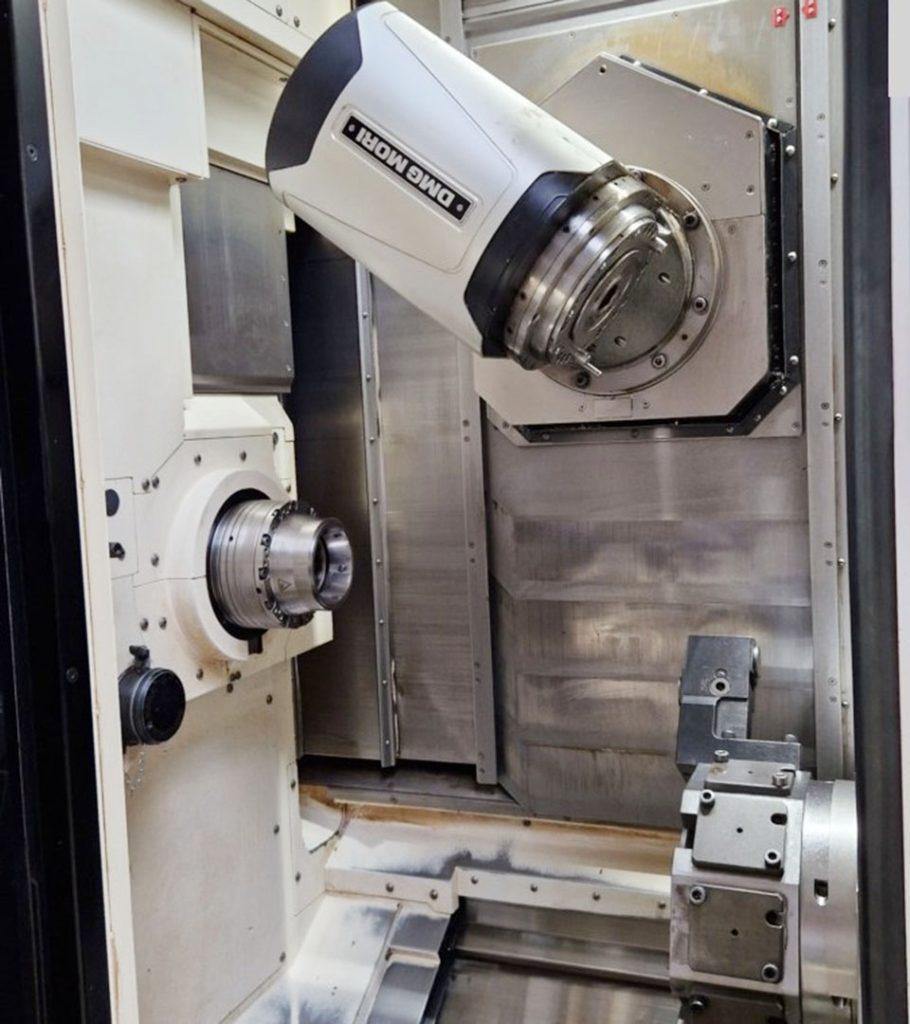

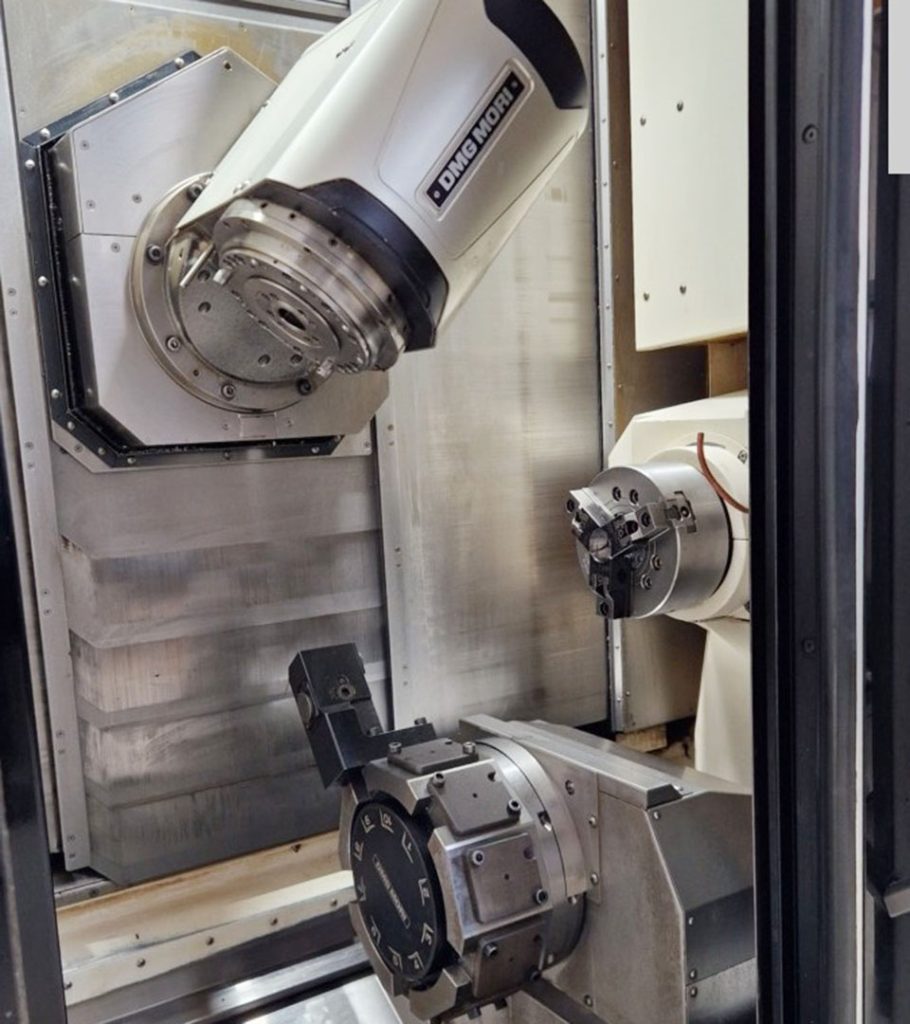

Turning/milling spindle, Capto C5, speeds 20000 rpm.
B axis (+/- 120 degrees)
Y axis (+/- 105 mm)
C axis
10-station turret below, with driven stations (10,000 rpm.)

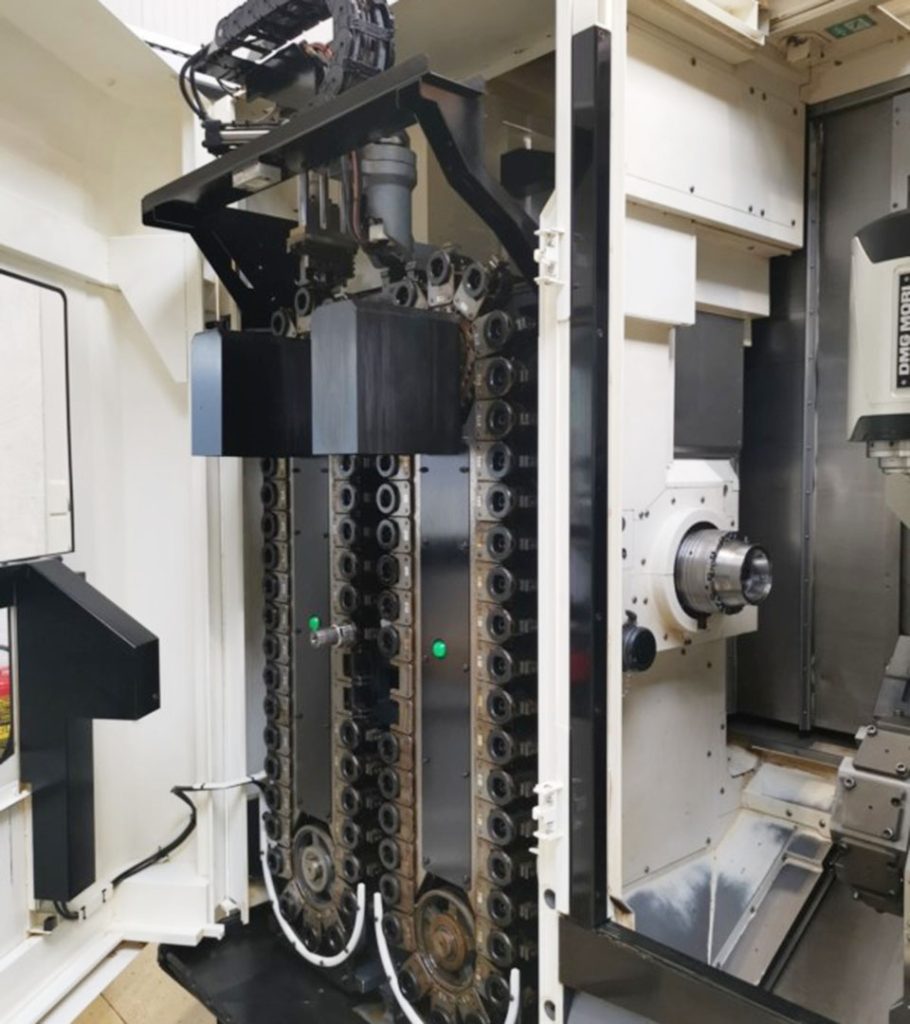

Tool magazine with 76 places, Capto C5
Coolant device, with internal cooling 70 bar
Chip conveyor
  •
