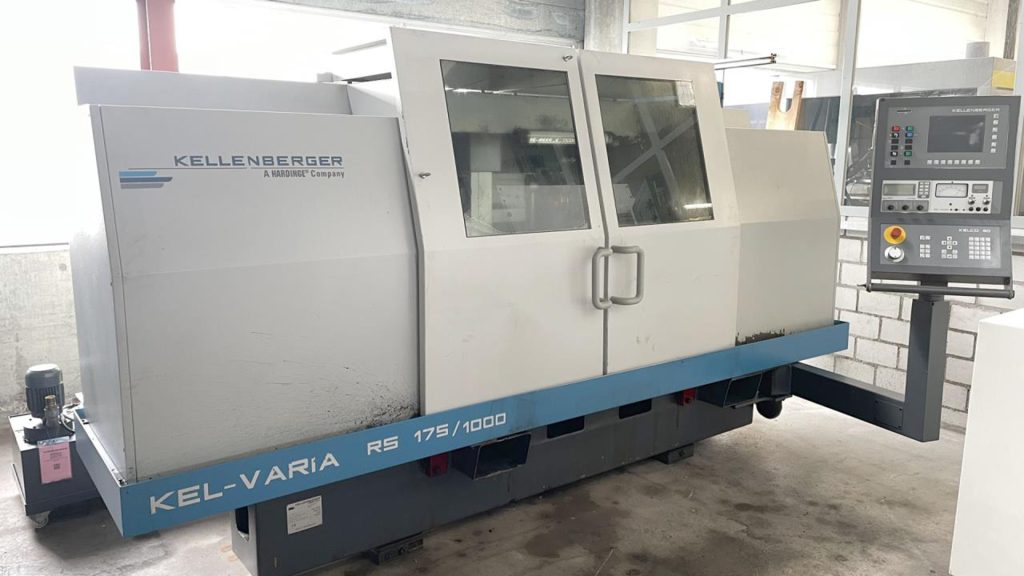

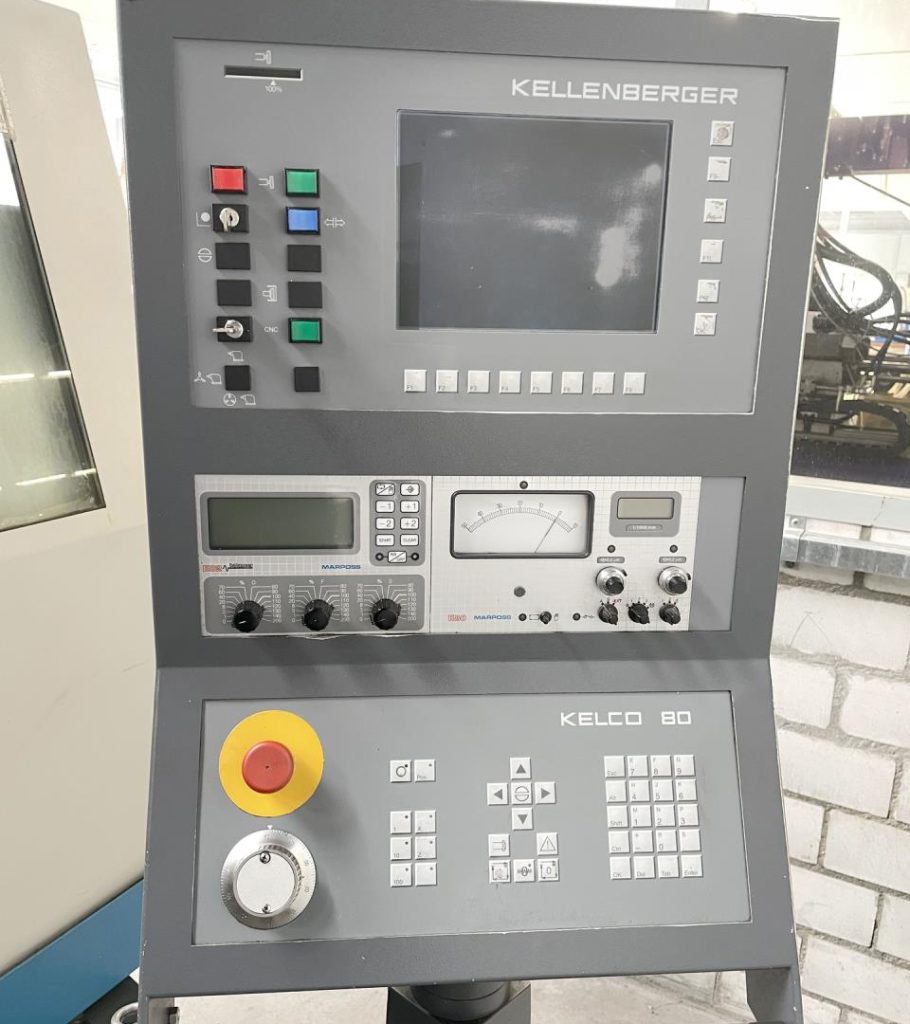

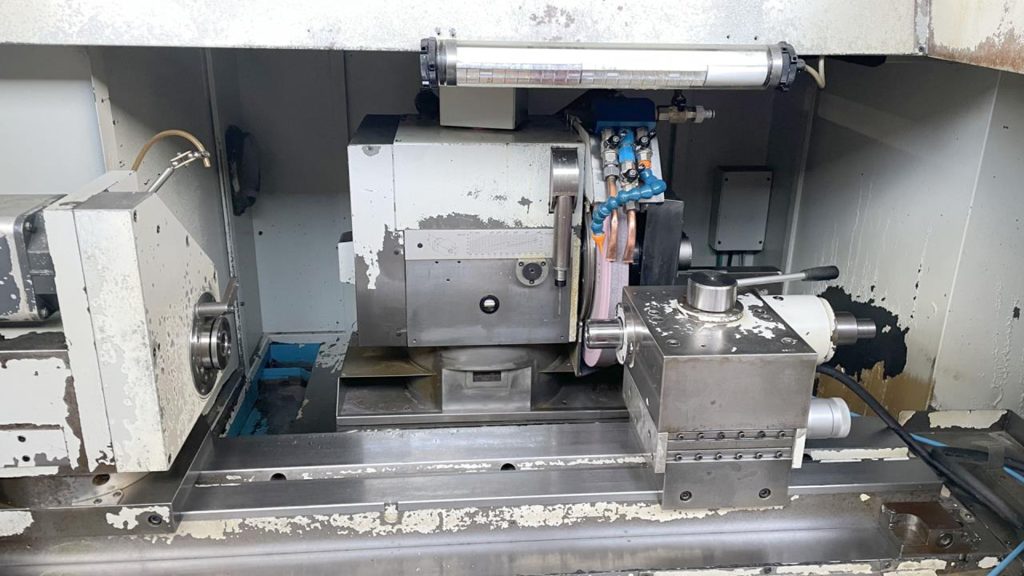

KELLENBERGER CNC cylindrical grinder KEL-VARIA RS 175 / 1000
Posted by：EurasiacomDate Posted：2023-12

Brand：KELLENBERGER? ? Type：KEL-VARIA RS 175 / 1000? ? Category：cylindrical grinder

Technical Parameter

Centre height 175 mm
Distance between centres 1000 mm
Max. grinding diameter 349 mm
Travels:
Z axis 1150 mm
X axis 320 mm
Workpiece weight on centres max. 150 kg

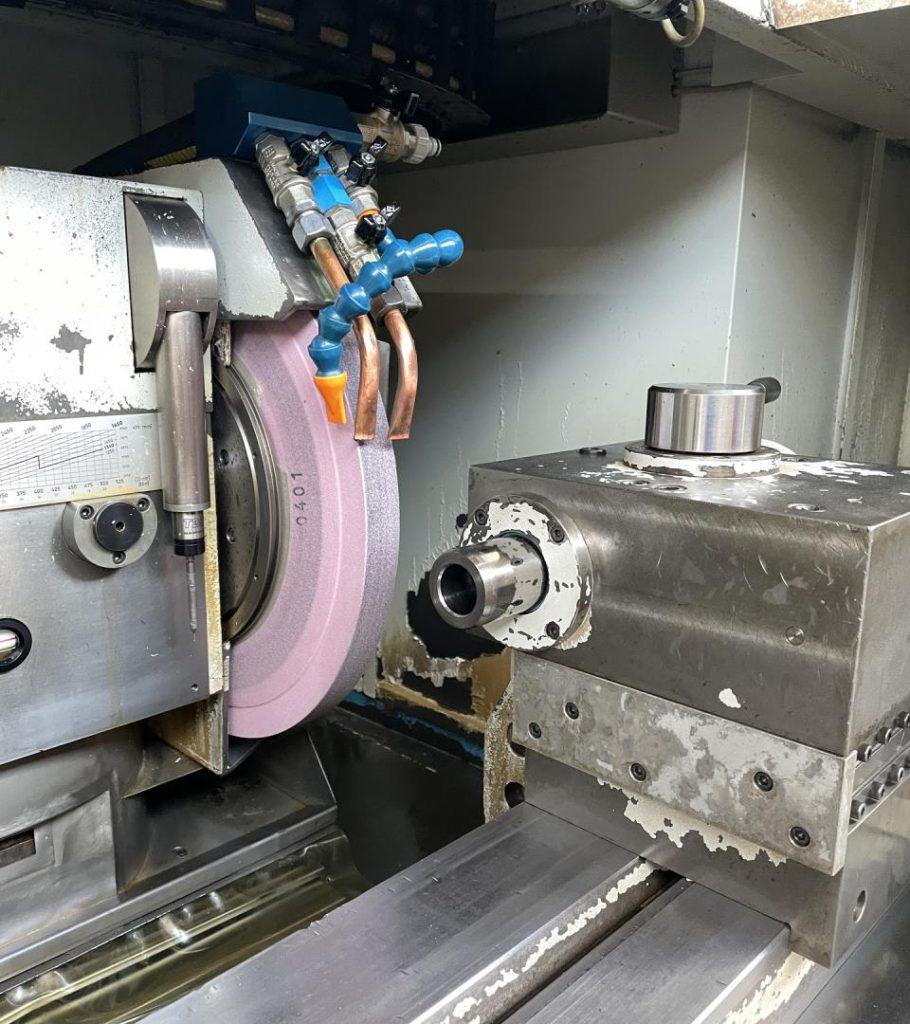

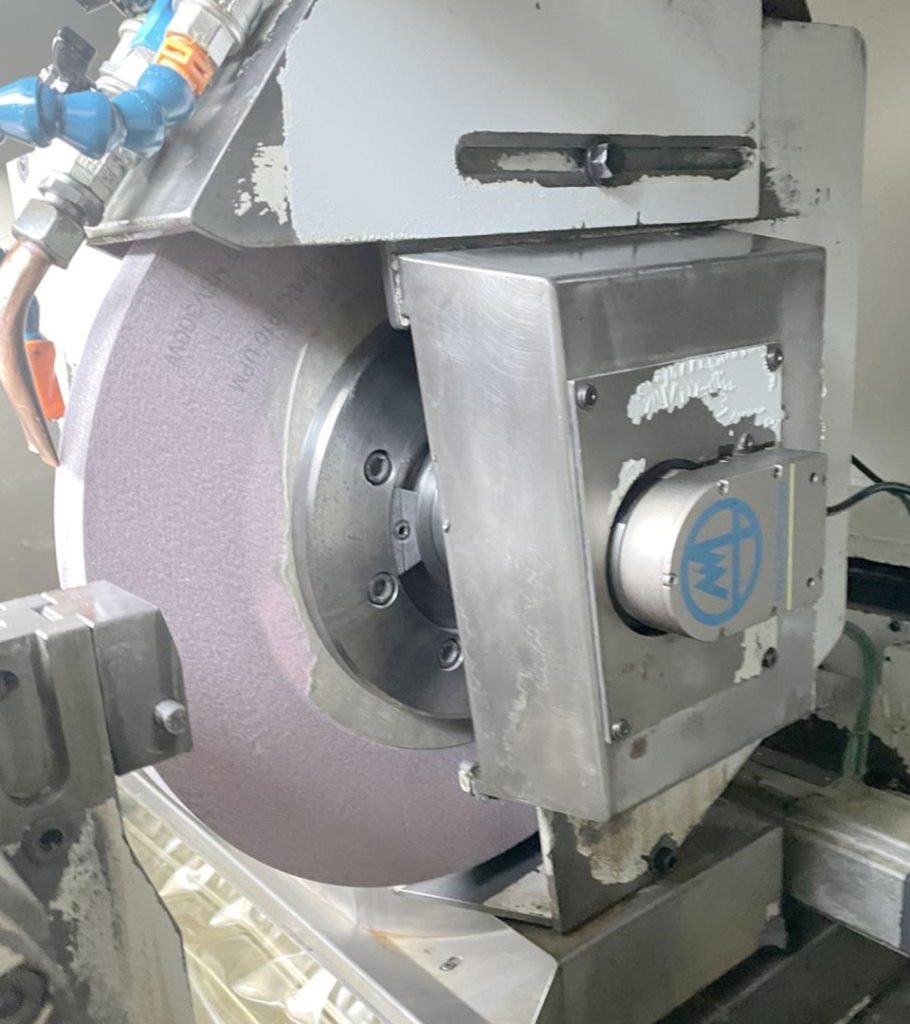

Grinding wheel right side:
Diameter 500 mm
Width 80 mm
Bore 127 mm
Grinding wheel speeds:
from 1500 rpm
up to 1800 rpm
Resolution
Rotatable grinding spindle head (b-axis) 240 °
Peripheral speed 32 m/s
Indexing automatic 0.1 °
Rapid feed motion 10 m/min
Work piece spindle head:
speeds:
stepless
from 5 rpm
up to 500 rpm
Holding taper: 5 MT
rotatable -30 / +120 °
Taper in tailstock: 4 MT
Spindle stroke 50 mm
Table speed:
stepless
from 0.02 m/min
up to 7.5 m/min
Max. table angular displacement 9 °
Air connect 4 bar
Voltage 50 Hz 3x 380 Volt
Grinding spindle motor 7.5 kW
Workpiece spindle motor 3.1 kW
Machine’s weight about 6000 kg
Overall dimensions machine:
Length 3600 mm
Width 2000 mm
Various accessories:
Coolant system
Touch probe MARPOSS
Measuring head MARPOSS
Positionar Passiv
Grinding wheel with flange
Lamp

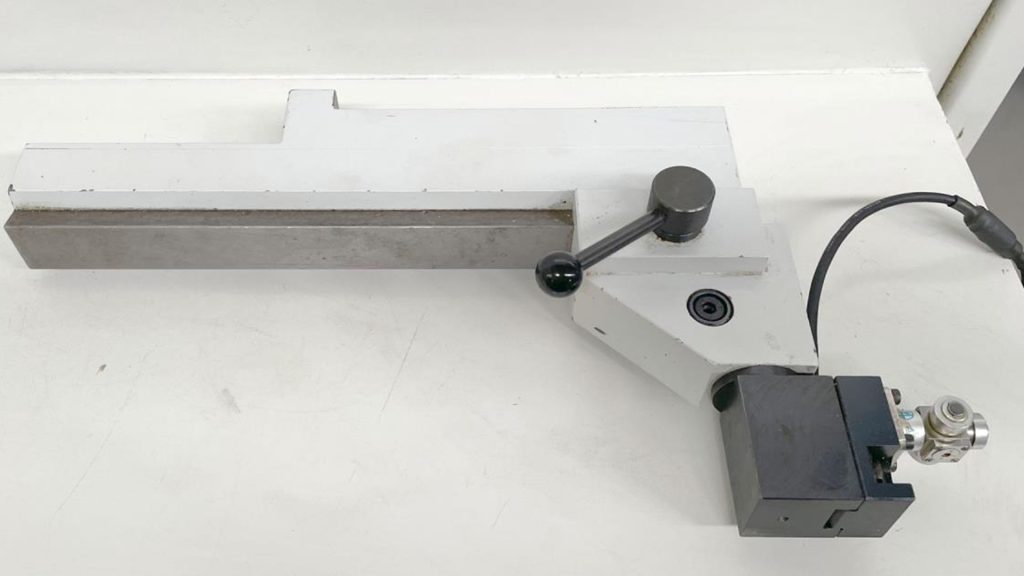

Tailstock with fine adjustement
  •
