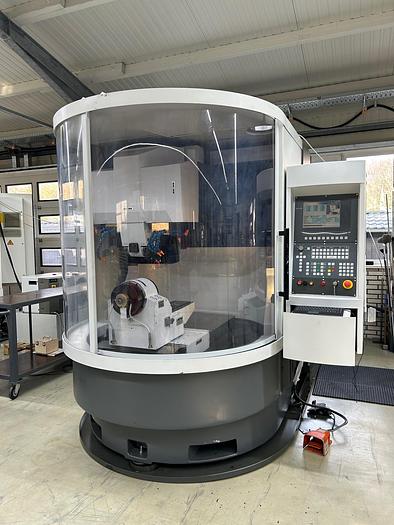

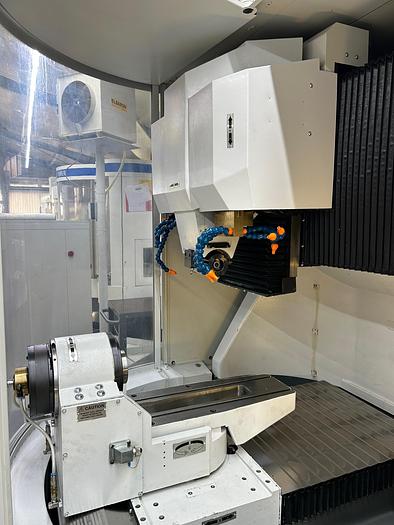

High-precision Walter Tool grinder type Helitronic Power

Posted by：EurasiacomDate Posted：2023-12

Brand：Walter? ? Type：Helitronic Power ? Category：Tool grinder

Technical Parameter

Manufacturer	Walter
Model	Helitronic Power
Year	2001
Condition	Used
Stock Number	M01811
X – axis longitudinal movement	470 mm
Y axis vertical movement	320 mm
Z-axis transverse movement	660 mm
C-axis swivel range	+/- 200 °

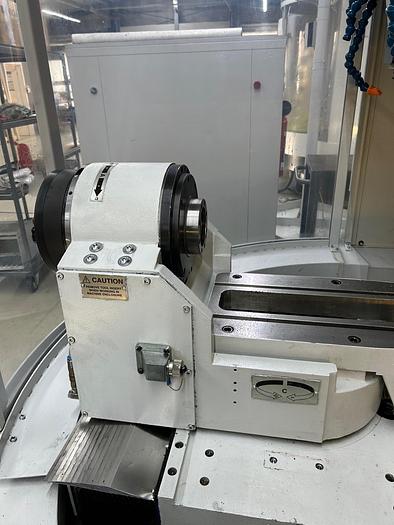

Workpiece holder	ISO 50
Workpiece diameter	Max. 320 mm
Workpiece length for face machining	280 mm
Workpiece length for peripheral machining	350 mm
Grinding wheel drive power	up to 11.5 kW
Grinding wheel speeds infinitely variable	0-9500 rpm.
Grinding wheel diameter	Max. 200 mm
Connected load	25 kVA (400 V / 50Hz)
Dimensions W x D x H approx.	2500 x 2930 x 1963 mm
Weight approx	4600 kg
colour	gray RAL 7011 / RAL 9003.
