Brand：ULMER? ? Type：SF 40? ? Category：cylindrical grinder
 |
 |
 |
 |
Technical Parameter
| Description | |

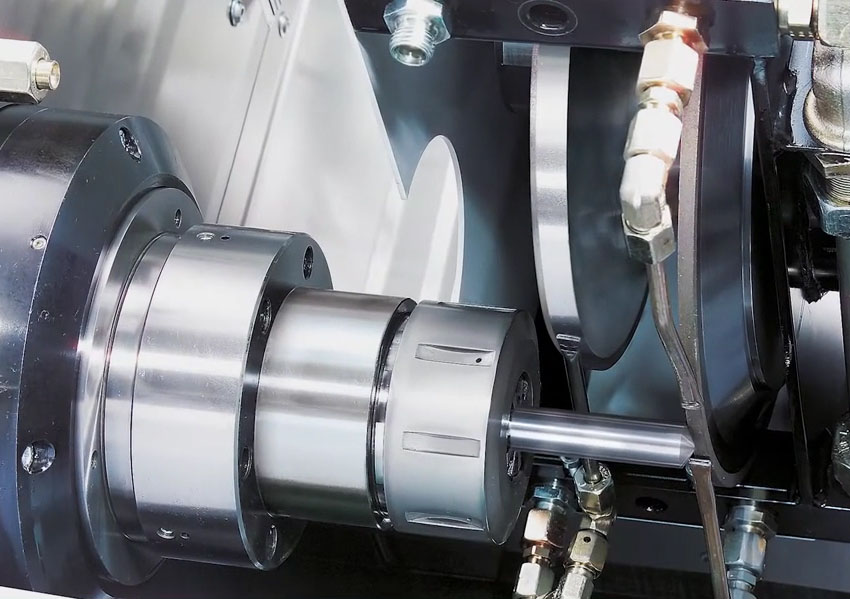

| Suitable for end machining of blanks as well as for peeling grinding of steps, for producing tips, chamfers, radii and their combination at the ends of cylindrical tools made of solid carbide, HSS and ceramic. Up to four different grinding wheels in one clamping. Accessories | NUMROTOplus single-user system software |
| Software NUMROTOplus touch cycles workpiece (RS/SF) | |
| Software NUMROTOplus SF cycles | |

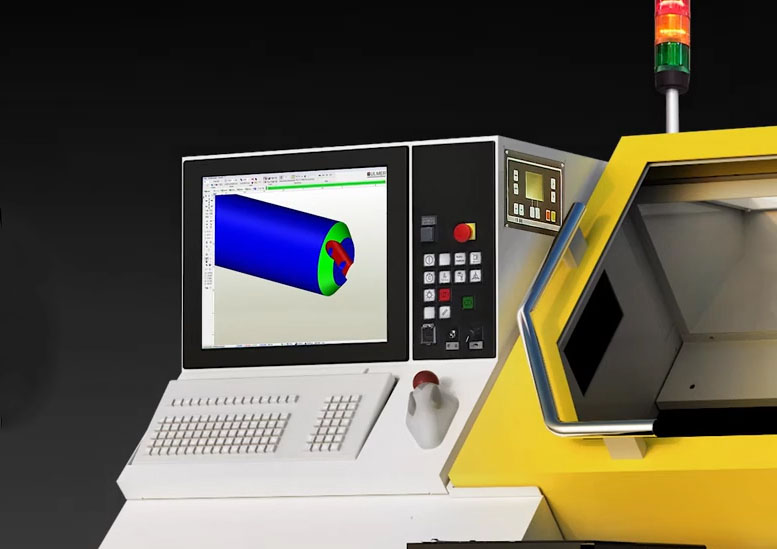

| Software NUMROTOplus cylindrical grinding SF 40 incl. software & hardware (hollow shaft motor) | |
| Chuck clamping cylinder pneumatic | |
| Balancing system SA (semi-automatic) EB 500 | |
| Pneumatic workpiece clamping | |
| Oil collecting pan | |
| Electrostatic mist extractor. | |
| Specifications | |
| Manufacturer | Ulmer / Reinecker |
| Model | SF 40 |
| Year | 2005 |
| Condition | Used |
| Stock Number | M01876 |
| Traverse X-axis | 450 mm |
| X axis travel | 450 mm |
| Z-axis travel | 250 mm |
| X-axis resolution | 0.001 mm |
| X axis resolution | 0.001 mm |
| Z-axis resolution | 0.001 mm |
| Resolution Z axis | 0.001 mm |
| Resolution C-Ache | 0.001° |
| X-axis rapid traverse | 15 m / min |
| Rapid X axis | 15 m / min |
| Rapid traverse Z-axis | 30 m / min., |
| Rapid Z axis | 30 m/min., |
| Workpiece length max. | 320 mm |
| Workpiece diameter max. | 32 mm |
| Workpiece weight max. | 2.5 kg |
| tool holder cone | ISO 50 |
| Tool holder cone | ISO 50 |
| Grinding spindle speed stepless | max. 7,500 rpm |
| Grinding wheel diameter | max 350 mm |
| Connected load approx. | 25KVA (400V /50Hz) |
| Dimensions L x W x H | 1900x1900x1900mm |
| Weight approx. | 4000 kg |
