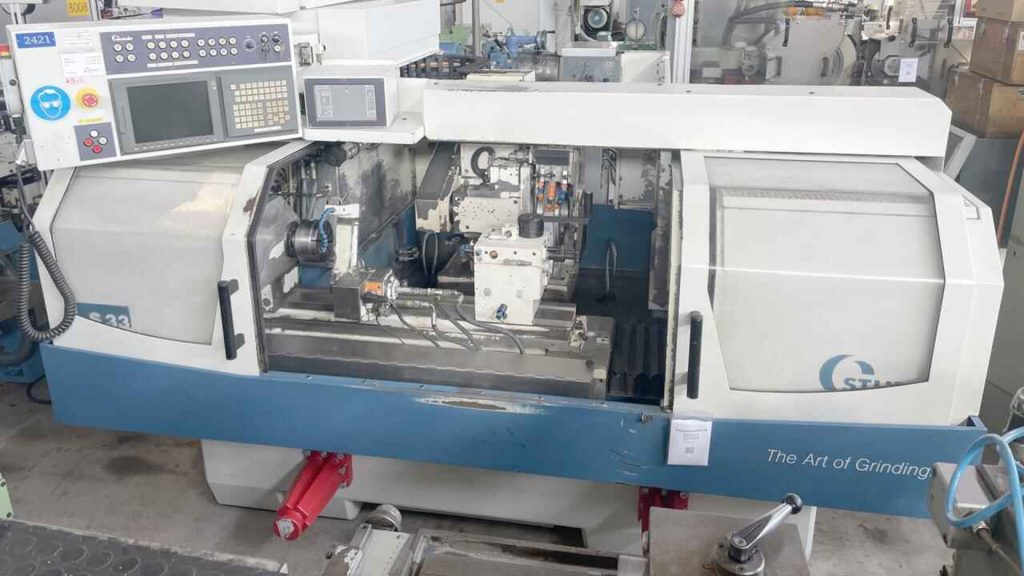

STUDER cylindrical grinder type S33
Posted by：EurasiacomDate Posted：2025-4

Brand：Studer? ? Type：S-33? ? Category：cylindrical grinder

Technical Parameter

Centre height 175 mm
Distance between centres 650 mm
Workpiece weight on centres max. 80 kg
Grinding wheel Diameter 500 mm
Grinding wheel Width 63 mm
Grinding wheel Bore 203 mm
Grinding wheel max. width 80 mm
Grinding spindle head Swivelling range -15 / 195 °
Grinding spindle head Automatic swivelling axis Hirth (B1) 1 °
Grinding spindle head Peripheral speed 50 m/s
Longitudinal slide Max. travel 285 mm
Transversal slide Max. travel 800 mm
Work piece spindle head speeds from 1 rpm
Work piece spindle head speeds up to 1500 rpm
Work piece spindle head Holding taper 5 MT
Work piece spindle head Typing speed 1 – 50 rpm
Work piece spindle head C axis 0.005 °
Tailstock Taper in tailstock 3 MT
Tailstock Tailstock travel of barrel 35 mm
Tailstock Spindle stroke 35 mm
Tailstock Spindle diameter 50 mm
Max. table angular displacement 8.5 °
Air connect 5.5 bar
Voltage 50 Hz 3x 400 Volt
Grinding spindle motor 7.5 kW
Workpiece spindle motor 3 kW
Total power required 20 kVA
Machine’s weight about 5000 kg
Overall dimensions machine Length 2620 mm
Overall dimensions machine Width 2090 mm
Overall dimensions machine Height 2000 mm

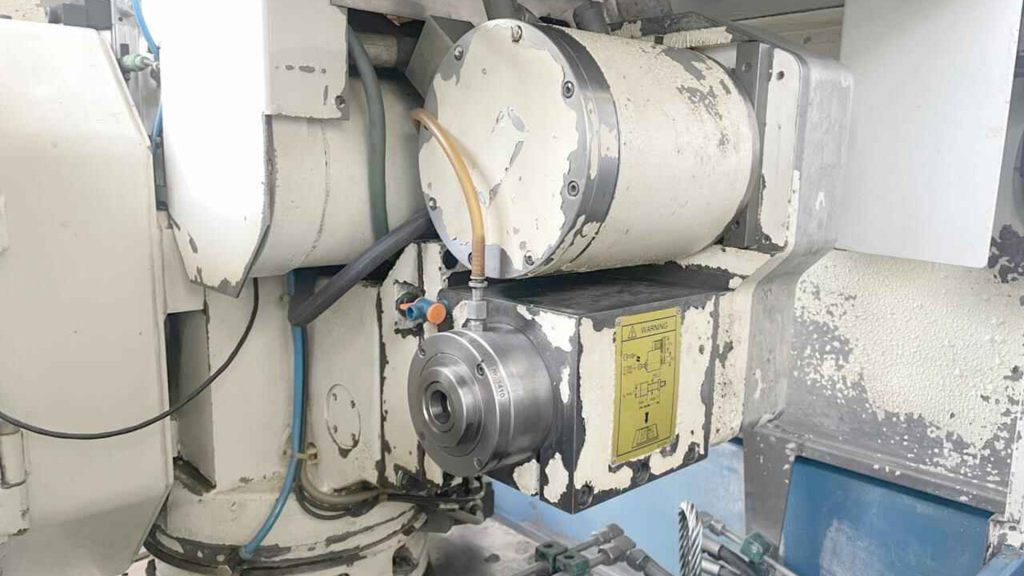

Internal grinding attachment Rotation speed up to 40000 rpm

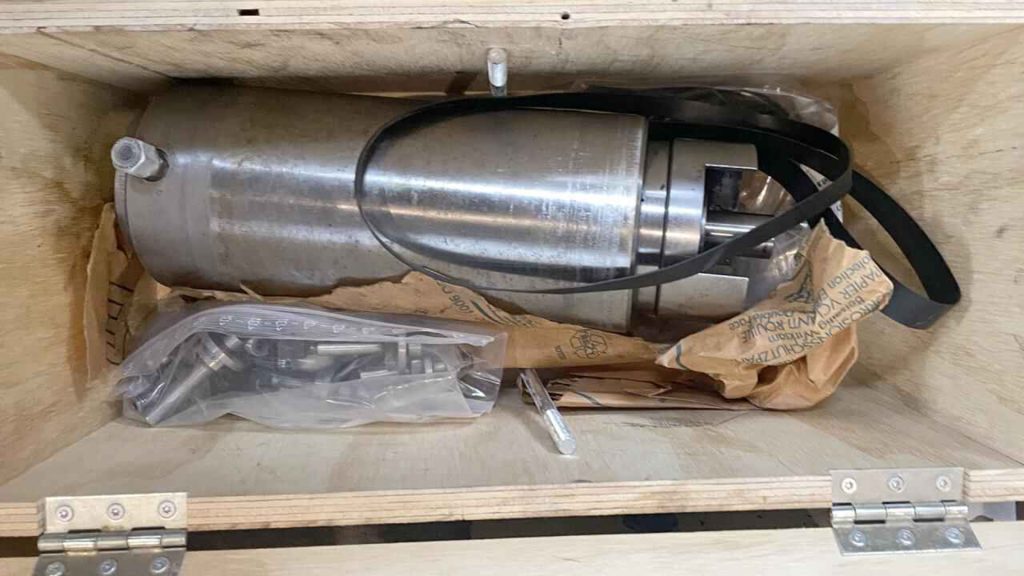

Extra spindle Rotation speed up to 60000 rpm
Macnetic chuck diameter 150 mm
  •
