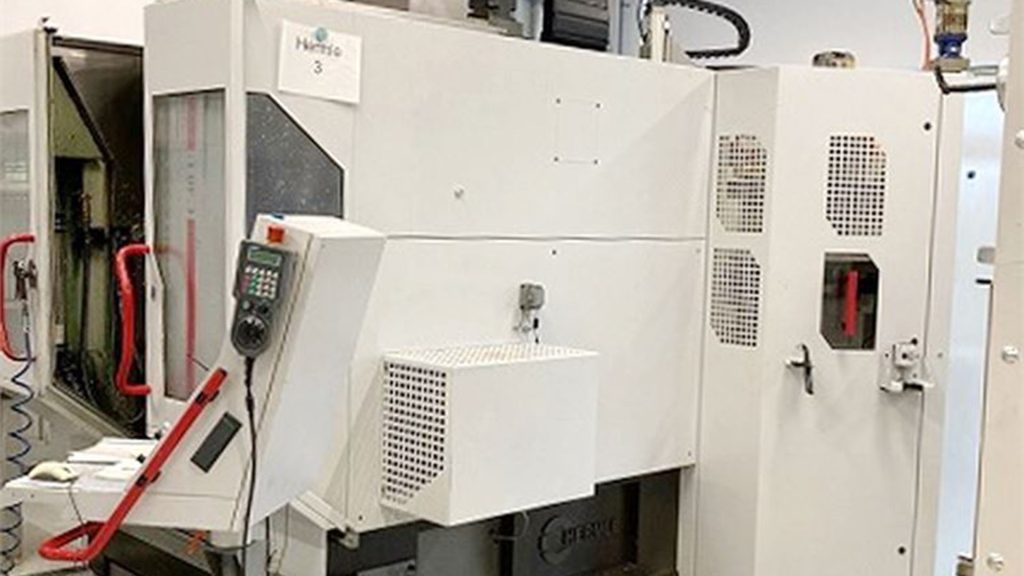

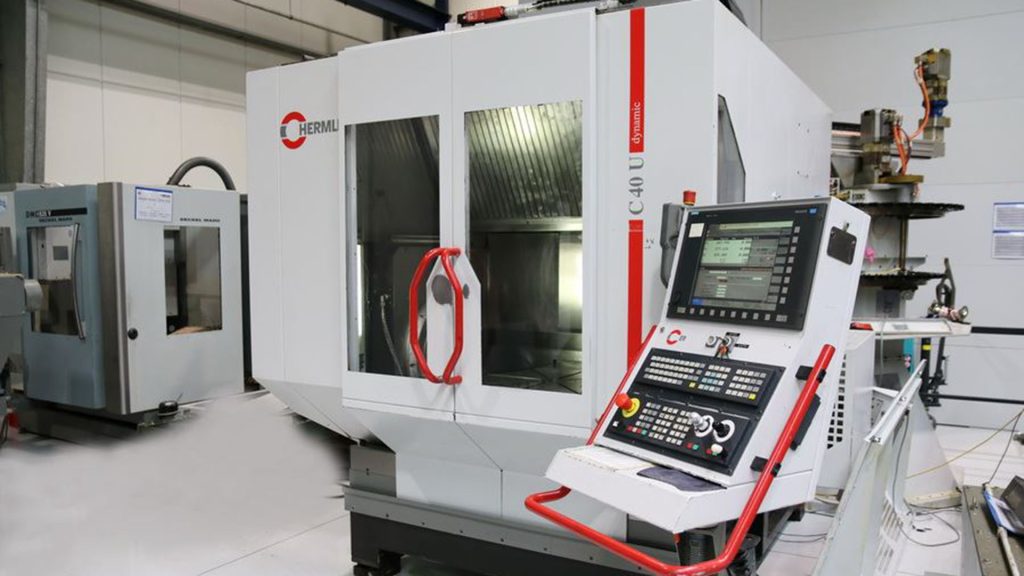

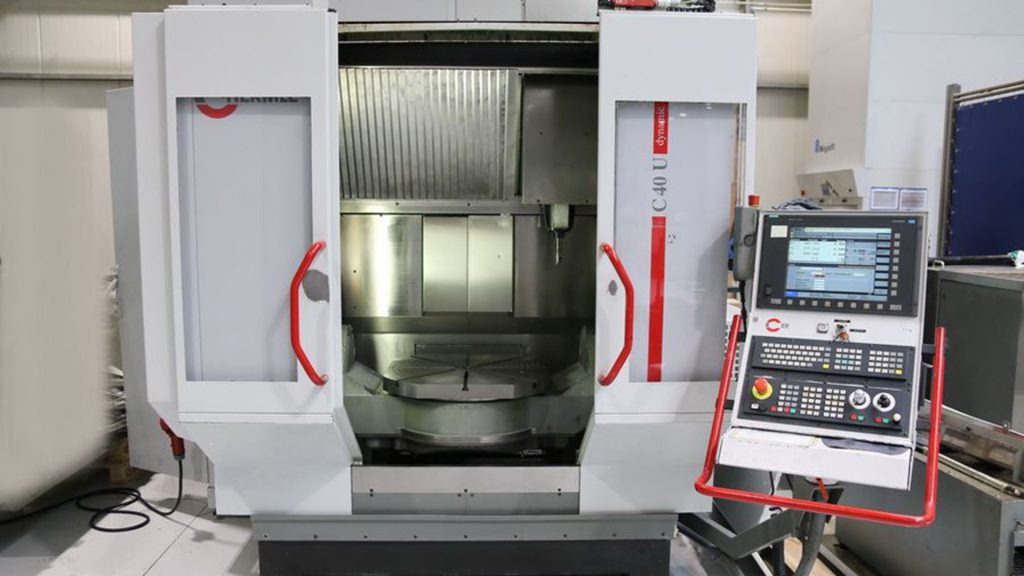

HERMLE Machining Center – Universal Type C 40 U
Posted by：EurasiacomDate Posted：2024-9

Brand：HERMLE ? ? Type：C 40 U? ? Category：Machining Center

Technical Parameter

Year 2003
Country of origin Germany
Technical Details
x-travel 850 mm
y-travel 700 mm
z-travel 500 mm

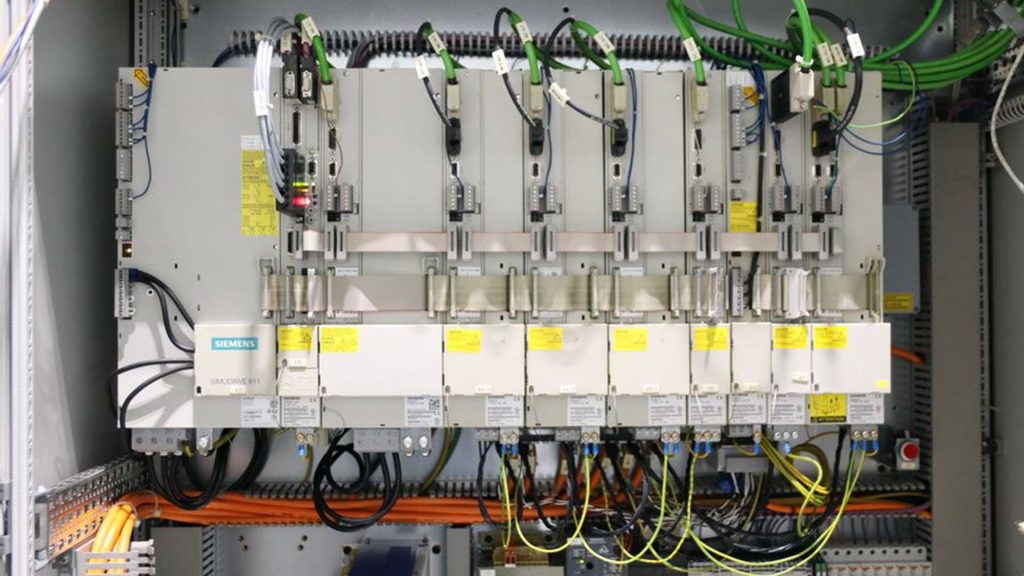

control Sinumerik 840D Siemens

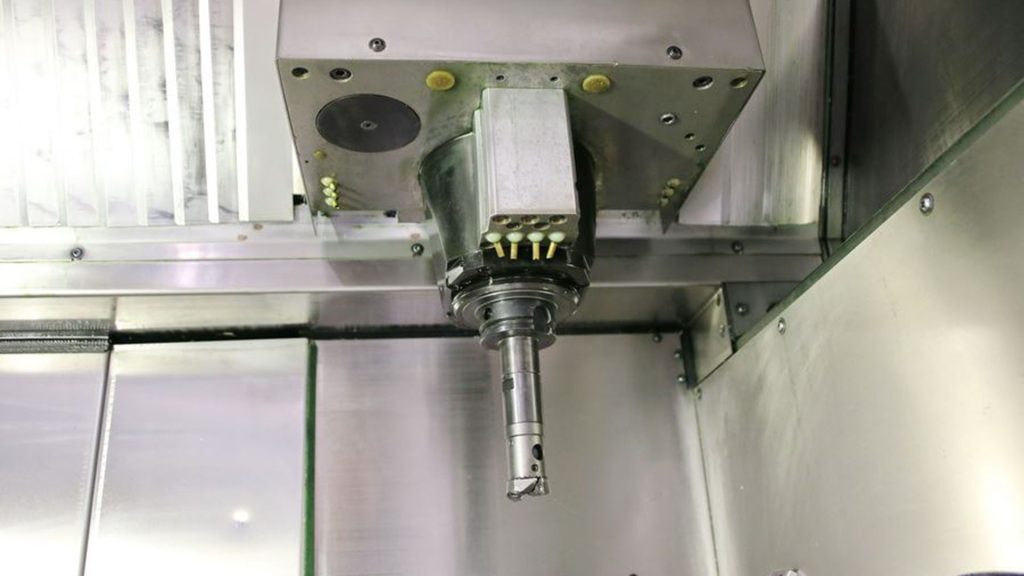

Main spindle
turning speed range – main spindle 110 – 16.000 min/1
power capacity – main spindel 15 / 10 kW
max. Torque 87 / 130 Nm
tool taper HSK-A63

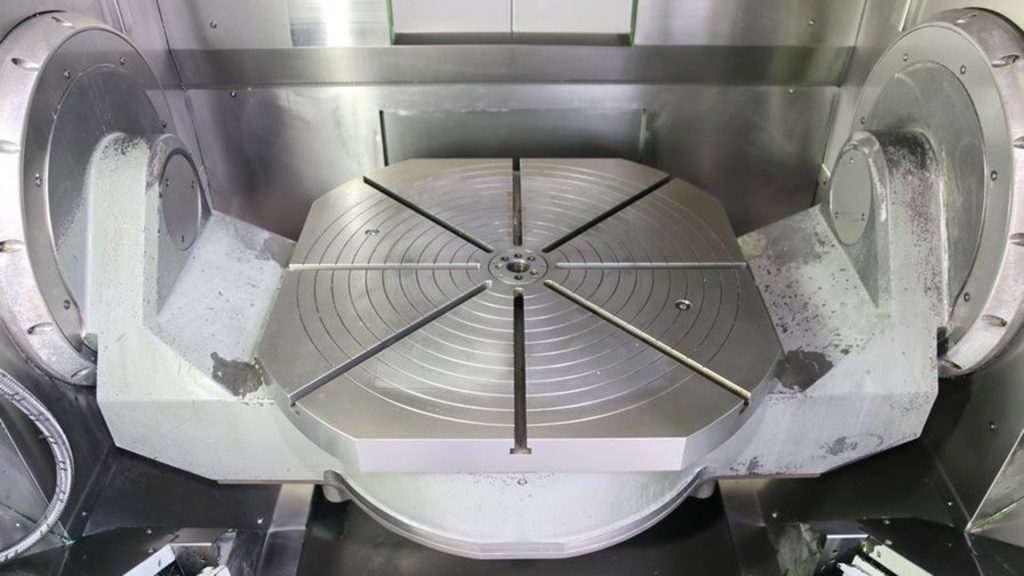

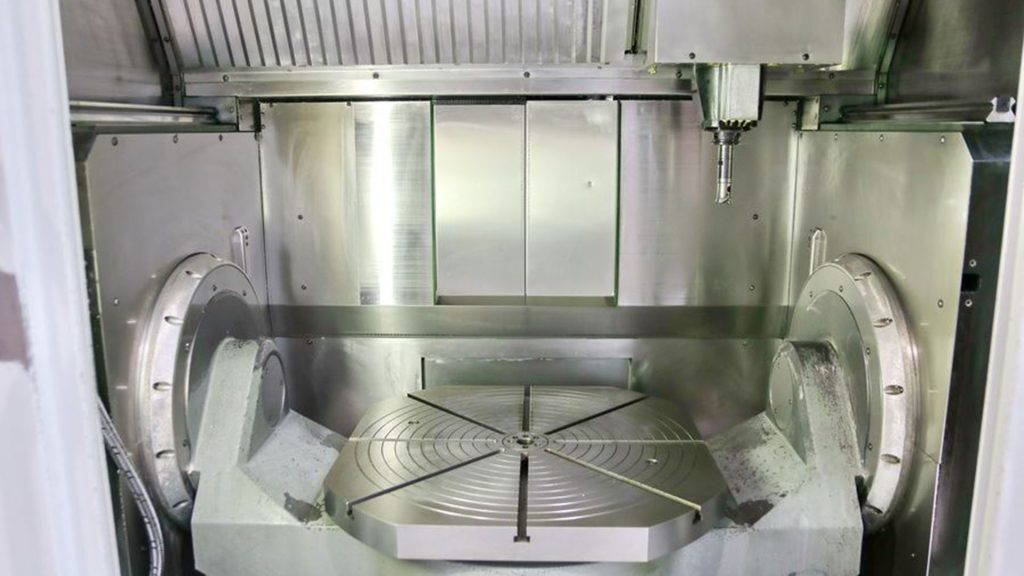

table surface area ? 800 mm
Swivel range A +25° / -100 °
rotatable C 360 °
max. table load 1.400 kg
table speed A 25 / C 65 min/1
T-slots 14H7
Tool-Presetter
number of toolpositions 123 pos.
max. tool diameter 80 (125) mm
max. tool length 300 mm
max. tool weight 8,0 kg
max. total weight 492 kg
change-time chip to chip 5,5 sec
feeds
rapid traverse ( X / Y / Z ) 60 m/min
Accelaration 10 m/s2
feed power 6 kN
total power requirement 43 kVA
weight of the machine ca. 10,5 t
dimensions of the machine ca. 8,5 x 5,5 x 3,0 m
Other information
Documents
high pressure coolant 20-80bar
full splash guard
Chip conveyor
elektr. hand wheel
paper band filter
  •
