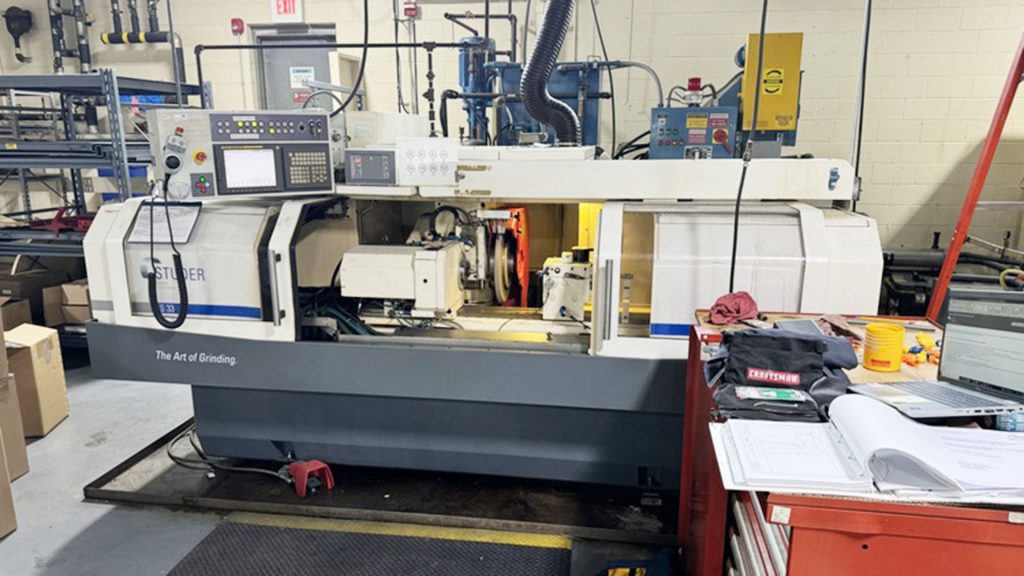

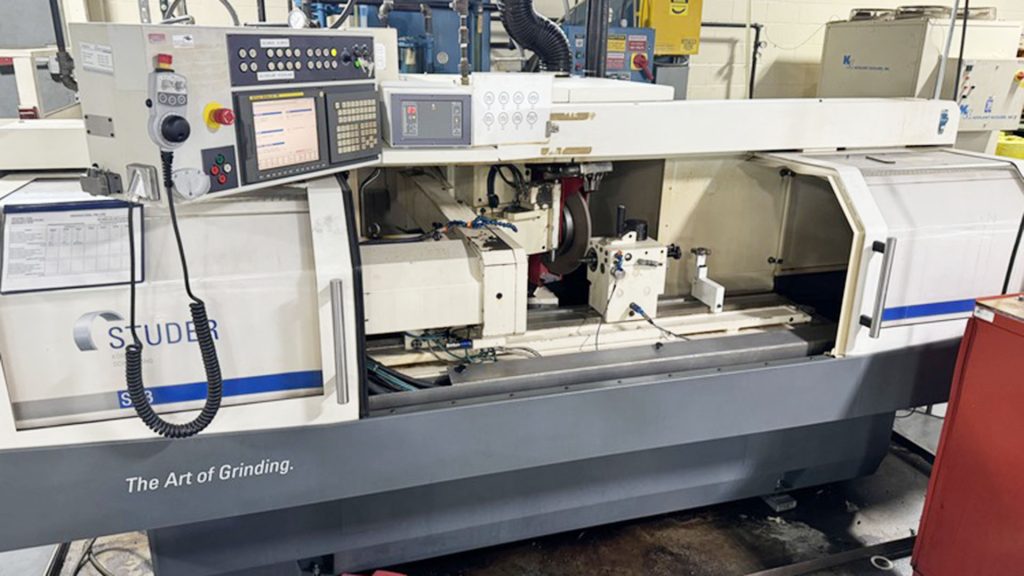

Swiss original Cylindrical Grinder Studer S33

Posted by：EurasiacomDate Posted：2024-2

Brand：Studer? ? Type：S-33? ? Category：cylindrical grinder

Technical Parameter

Studer 4-Axis CNC OD/ID Grinder
SWING	13.78″
CENTERS	39.37″
GRINDING WHEEL DIA.	20″
WHEEL POWER	10.2 hp
GAUGING	Yes
DRESSER	Yes

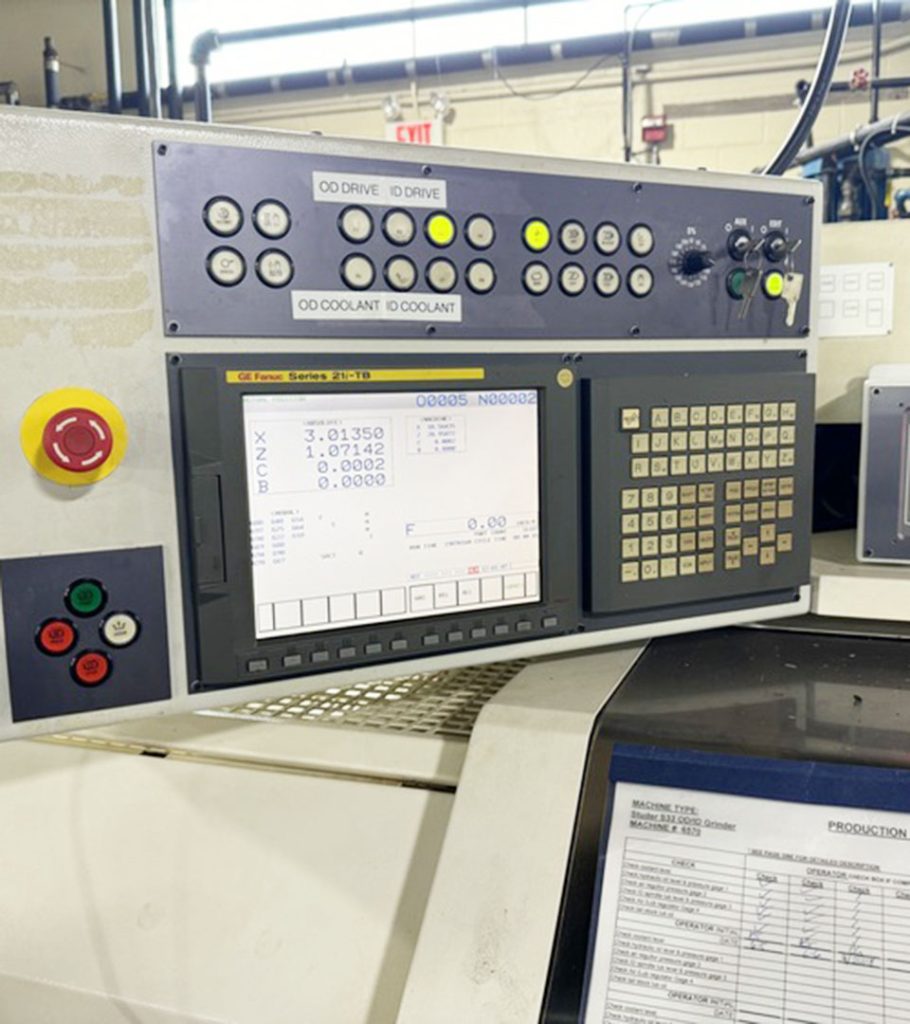

CONTROL CNC	FANUC 21i
DIMENSIONS	112″ x 86″ x 78″
WEIGHT	11000 Lbs.
Center Height	6.9″
Work Piece Maximum Weight	264 Lbs.
OD Grinding Wheel Size	19.69″ x 2.48″ x 8″
OD Grinding Wheel Speed	9840 SFPM
Work Table Swivelling Range	+8.5 Deg.
Wheelhead X-Axis Travel	11.22″
Programmable X-Axis Infeed Speed	.00004 – 197 IPM
Longitudinal Z-Axis Table Travel	45.27″
Programmable Z-Axis Travel	.00004 – 393 IPM
Workhead Speeds	1 – 1500 RPM
Tailstock Taper	No. MK3
Tailstock Stroke	1.38″
