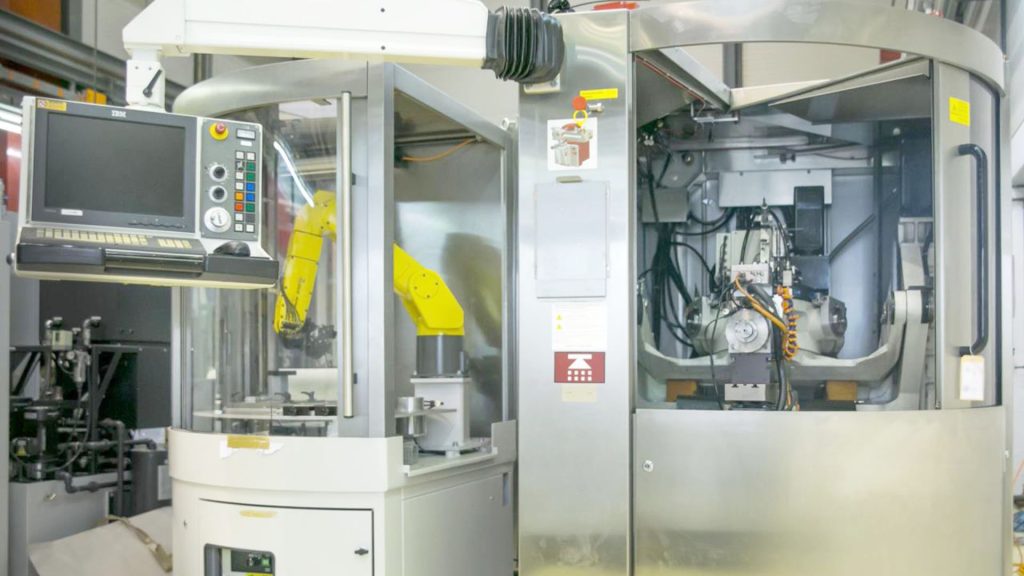

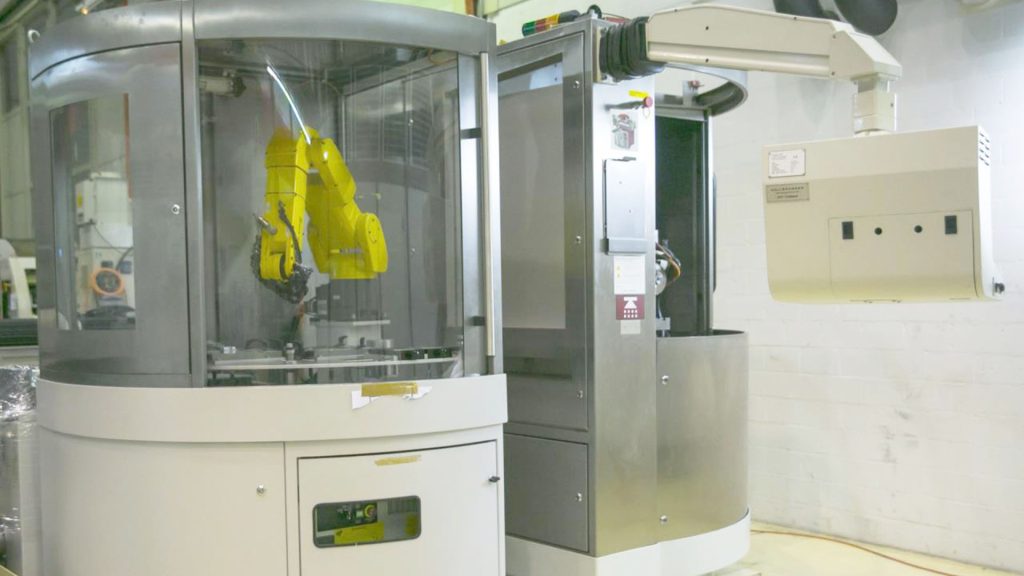

Swiss original EWAG tool grinder EWAMATIC LINE

Posted by：EurasiacomDate Posted：2024-2

Brand：EWAG? ? Type：S-33? ? Category：tool grinder

Technical Parameter

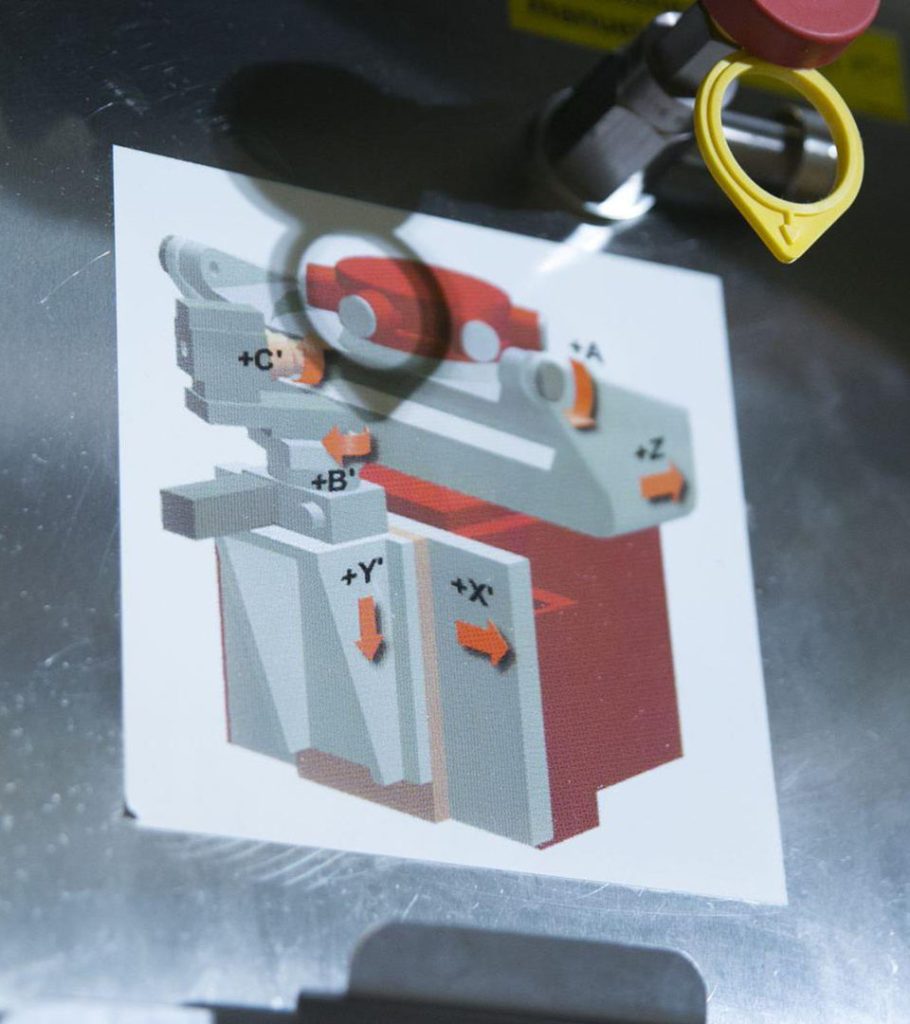

Number of axis total	6
Axial motion
Crosswise	360 mm
Longitudinal	240 mm
Vertical	240 mm
A axis (grinding head rotaion)	-15 / +25 °
B axis swivelling range	+ / -120 °
B axis resolution max.	0.0001 °
C axis (spindle,resolution)	0.0001 °

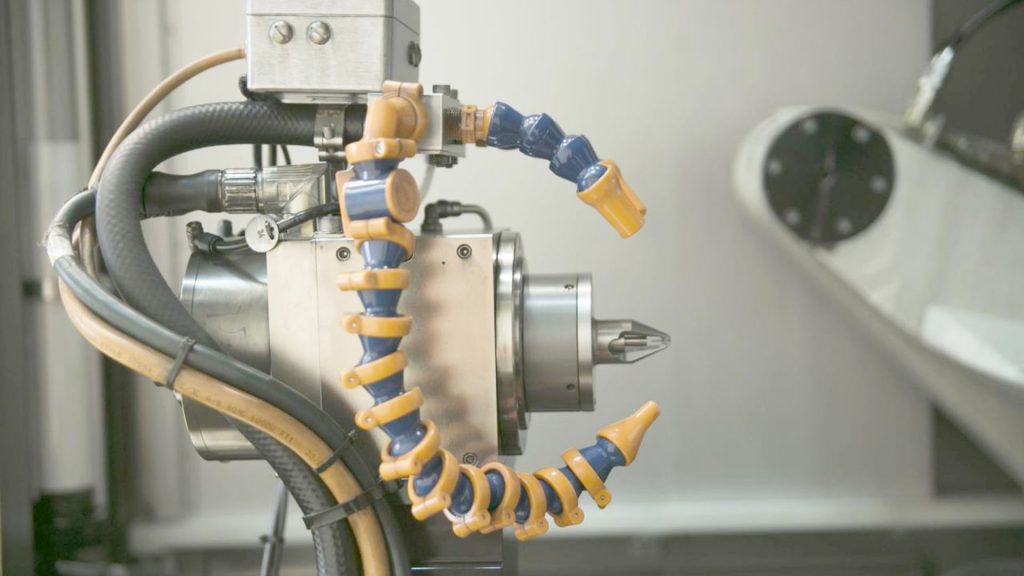

Grinding spindle speeds
stepless
from	200 rpm
up to	6000 rpm
Max forwarding speed	10 m/min
Max. forwarding speed cross	10 m/min
Max forwarding speed vertical	10 m/min
Hydraulic system	6 bar
Voltage 50 Hz 3x	400 Volt
Grinding spindle motor	7.5 kW
Total power required	16 kVA
Machine’s weight about	4000 kg
Overall dimensions machine
Length	3400 mm
Width	2200 mm
Height	2500 mm

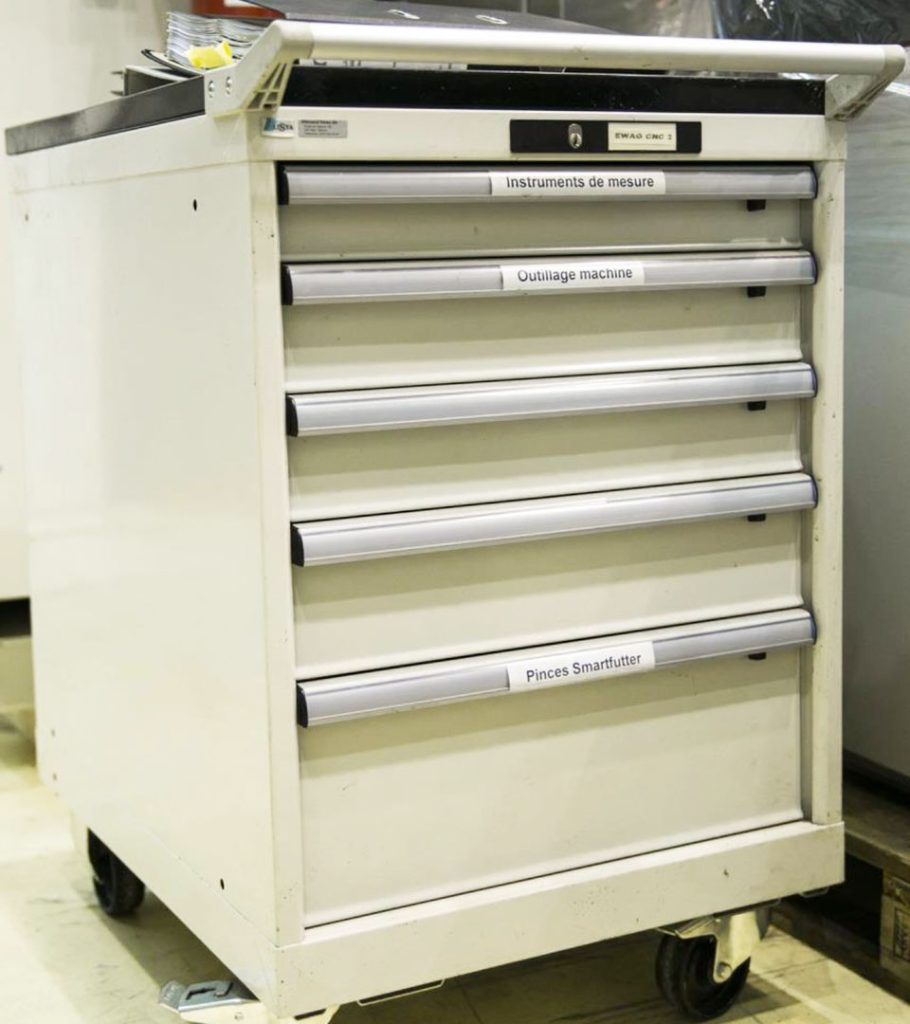

Various accessories

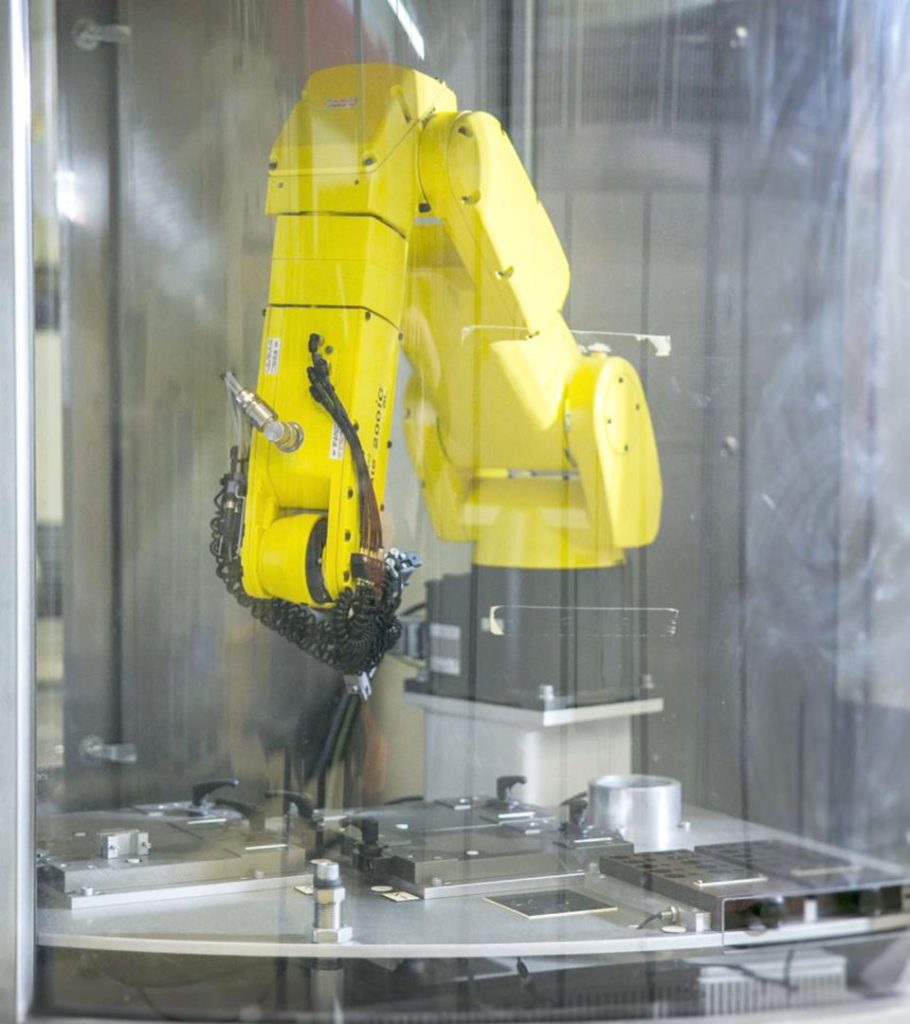

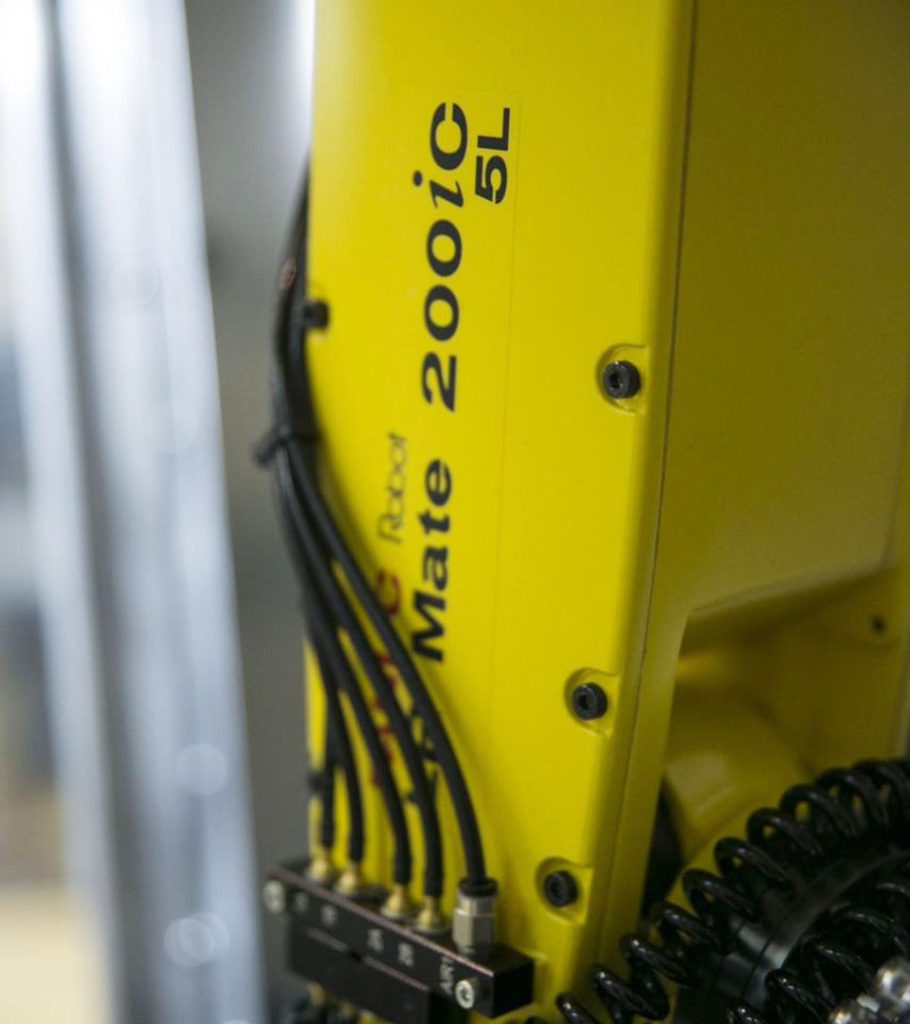

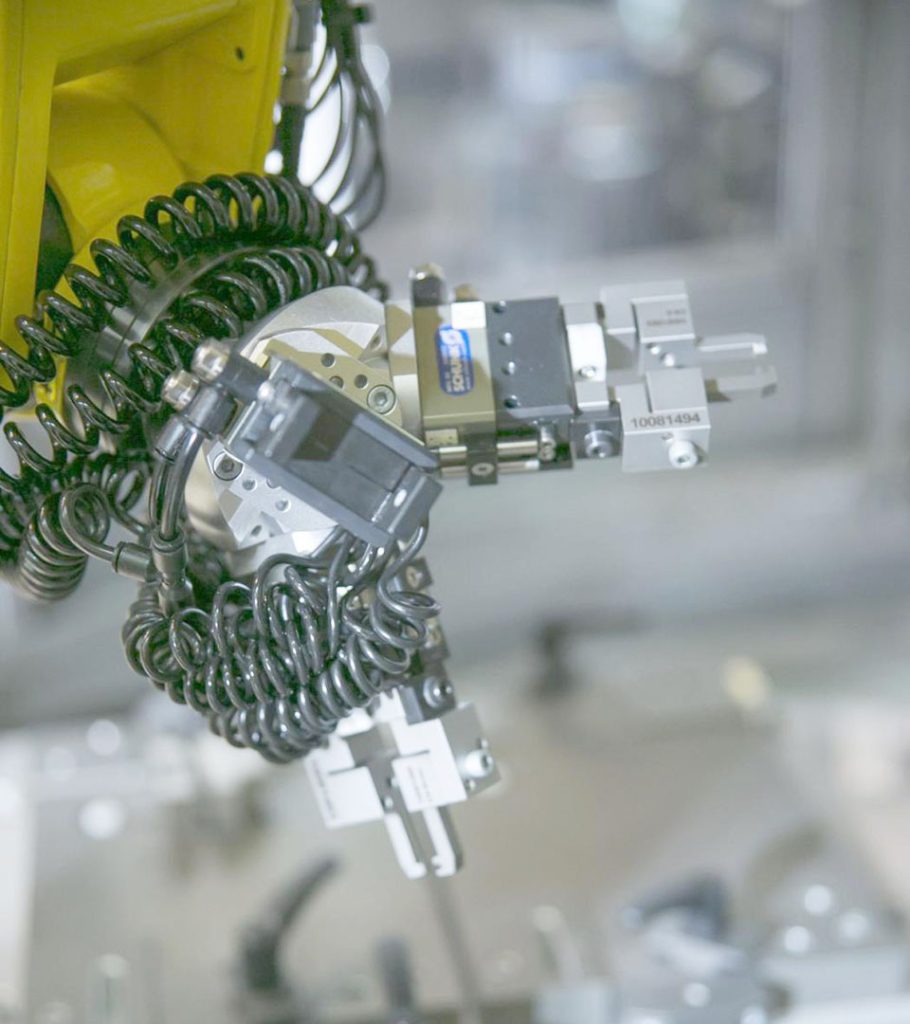

Loading roboter	FANUC Mate 200ic

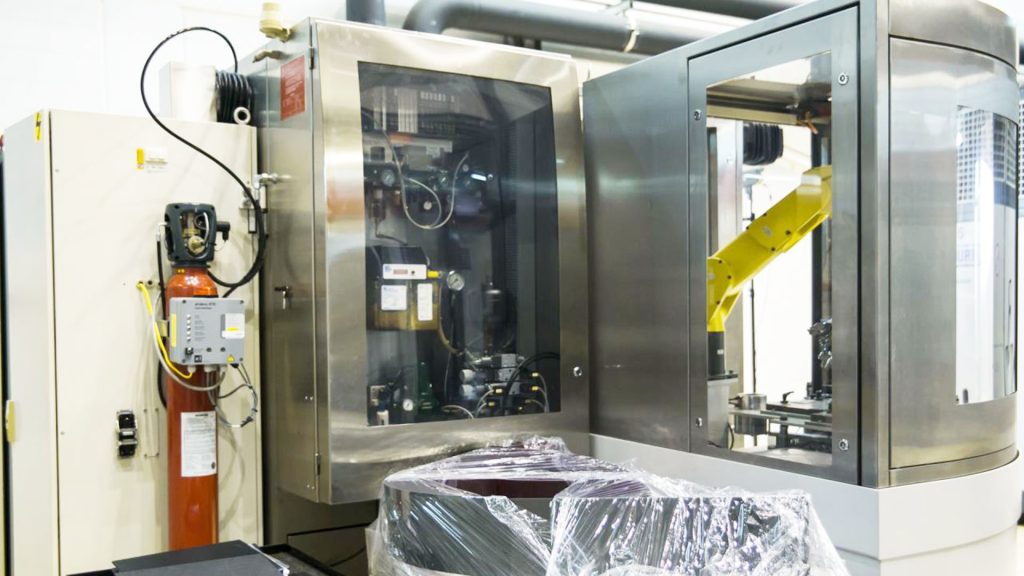

Fire extinguishing system
Interface serial port RS 232
Notes

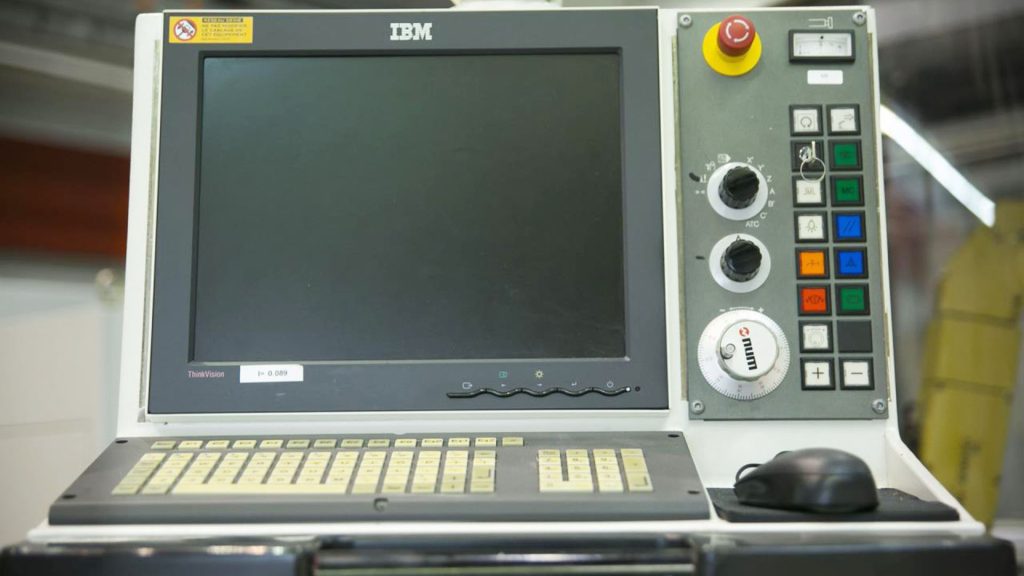

Computer software	Windows XP Professional
